ATM Series

Connector Solutions

ATM Series™ connectors are a high-performance, cost-effective solution specifically designed for smaller AWG applications, while still maintaining the strengths of the AT Series™ product line.

The connector design incorporates an integral latching system that ensures a definitive electrical and mechanical connection. Connector housings are manufactured with a thermoplastic material that is not only durable, but has excellent UV resistance, dielectric/mechanical properties and environmentally RoHS compliant. The sealing system is comprised of an internal and rear silicone, multi-sealing perimeter against environmental ingress. Contacts are derived from quality copper alloy to ensure an electrically-reliable connection.

ATM Series™ connectors are compatible with other existing standard products industry-wide.

Specifications »

Type

Positions

Options

Contact Type


*Each item sold separately

12 Way Pin Receptacle

Strain Relief
Receptacle ATM04-12PA-SR1BK Drawing
Wedgelock AWM-12P Drawing
Contacts (Nickel) AT60-202-20141 Drawing
Contacts (Gold) AT60-202-2031 Drawing

*Each item sold separately

12 Way Socket Plug

Plug ATM06-12SA Drawing
Wedgelock AWM-12S Drawing
Contacts (Nickel) AT62-201-20141 Drawing
Contacts (Gold) AT62-201-2031 Drawing

*Each item sold separately

12 Way Socket Plug

Strain Relief
Plug ATM06-12SA-SR1BK Drawing
Wedgelock AWM-12S Drawing
Contacts (Nickel) AT62-201-20141 Drawing
Contacts (Gold) AT62-201-2031 Drawing

*Each item sold separately

12 Way Pin Receptacle

Receptacle ATM04-12PA Drawing
Wedgelock AWM-12P Drawing
Contacts (Nickel) AT60-202-20141 Drawing
Contacts (Gold) AT60-202-2031 Drawing

*Each item sold separately

8 Way Socket Plug

Plug ATM06-08SA Drawing
Wedgelock AWM-8S Drawing
Contacts (Nickel) AT62-201-20141 Drawing
Contacts (Gold) AT62-201-2031 Drawing

*Each item sold separately

8 Way Pin Receptacle

Strain Relief
Receptacle ATM04-08PA-SR1BK Drawing
Wedgelock AWM-8P Drawing
Contacts (Nickel) AT60-202-20141 Drawing
Contacts (Gold) AT60-202-2031 Drawing

*Each item sold separately

8 Way Pin Receptacle

Receptacle ATM04-08PA Drawing
Wedgelock AWM-8P Drawing
Contacts (Nickel) AT60-202-20141 Drawing
Contacts (Gold) AT60-202-2031 Drawing

*Each item sold separately

8 Way Socket Plug

Strain Relief
Plug ATM06-08SA-SR1BK Drawing
Wedgelock AWM-8S Drawing
Contacts (Nickel) AT62-201-20141 Drawing
Contacts (Gold) AT62-201-2031 Drawing

*Each item sold separately

6 Way Pin Receptacle

Receptacle ATM04-6P Drawing
Wedgelock AWM-6P Drawing
Contacts (Nickel) AT60-202-20141 Drawing
Contacts (Gold) AT60-202-2031 Drawing

*Each item sold separately

6 Way Socket Plug

Plug ATM06-6S Drawing
Wedgelock AWM-6S Drawing
Contacts (Nickel AT62-201-20141 Drawing
Contacts (Gold) AT62-201-2031 Drawing

*Each item sold separately

6 Way Pin Receptacle

Strain Relief
Receptacle ATM04-6P-SR01BK Drawing
Wedgelock AWM-6P Drawing
Contacts (Nickel) AT60-202-20141 Drawing
Contacts (Gold) AT60-202-2031 Drawing

*Each item sold separately

6 Way Socket Plug

Strain Relief
Plug ATM06-6S-SR01BK Drawing
Wedgelock AWM-6S Drawing
Contacts (Nickel) AT62-201-20141 Drawing
Contacts (Gold) AT62-201-2131 Drawing

*Each item sold separately

4 Way Pin Receptacle

Strain Relief
Receptacle ATM04-4P-SR01BK Drawing
Wedgelock AWM-4P Drawing
Contacts (Nickel) AT60-202-20141 Drawing
Contacts (Gold) AT60-202-2031 Drawing

*Each item sold separately

4 Way Socket Plug

Strain Relief
Plug ATM06-4S-SR01BK Drawing
Wedgelock AWM-4S Drawing
Contacts (Nickel) AT62-201-20141 Drawing
Contacts (Gold) AT62-201-2131 Drawing

*Each item sold separately

4 Way Socket Plug

Plug ATM06-4S Drawing
Wedgelock AWM-4S Drawing
Contacts (Nickel) AT62-201-20141 Drawing
Contacts (Gold) AT62-201-2031 Drawing

*Each item sold separately

3 Way Pin Receptacle

Strain Relief
Receptacle ATM04-3P-SR01BK Drawing
Wedgelock AWM-3P Drawing
Contacts (Nickel) AT60-202-20141 Drawing
Contacts (Gold) AT60-202-2031 Drawing

*Each item sold separately

3 Way Plug

Strain Relief
Plug ATM06-3S-SR01BK Drawing
Wedgelock AWM-3S Drawing
Contacts (Nickel) AT62-201-20141
Contacts (Gold) AT62-201-2131 Drawing

*Each item sold separately

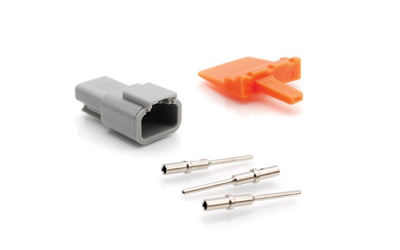

3 Way Pin Receptacle

Reeptacle ATM04-3P Drawing
Wedgelock AWM-3P Drawing
Contacts (Nickel) AT60-202-20141 Drawing
Contacts (Gold) AT60-202-2031 Drawing

*Each item sold separately

3 Way Socket Plug

Plug ATM06-3S Drawing
Wedgelock AWM-3S Drawing
Contacts (Nickel) AT62-201-20141 Drawing
Contacts (Gold) AT62-201-2031 Drawing

*Each item sold separately

3 Way Pin Receptacle

Receptacle ATM04-4P Drawing
Wedgelock AWM-4P Drawing
Contacts (Nickel) AT60-202-20141 Drawing
Contacts (Gold) AT60-202-2031 Drawing

*Each item sold separately

2 Way Socket Plug

Strain Relief
Plug ATM06-2S-SR01BK Drawing
Wedgelock AWM-2S Drawing
Contacts (Nickel) AT62-201-20141 Drawing
Contacts (Gold) AT62-201-2131 Drawing

*Each item sold separately

2 Way Pin Receptacle

Receptacle ATM04-2P Drawing
Pin AWM-2P Drawing
Contacts (Nickel) AT60-202-20141 Drawing
Contacts (Gold) AT60-202-2031 Drawing

*Each item sold separately

2 Way Socket Plug

Plug ATM06-2S Drawing
Wedgelock AWM-2S Drawing
Contacts (Nickel) AT62-201-20141 Drawing
Contacts (Gold) AT62-201-2031 Drawing

*Each item sold separately

2 Way Pin Receptacle

Strain Relief
Receptacle ATM04-2P-SR01BK Drawing
Wedgelock AWM-2P Drawing
Contacts (Nickel) AT60-202-20141 Drawing
Contacts (Gold) AT60-202-2031 Drawing

Seal Plug

Black (For SR01) AT13-204-2005-SR Drawing

Pin Contacts

Nickel-plated
20-22 AWG AT60-202-20141 Drawing

Pin Contacts

Gold-plated
20-22 AWG AT60-202-2031 Drawing

Socket Contacts

Nickel-plated
20-22 AWG AT62-201-20141

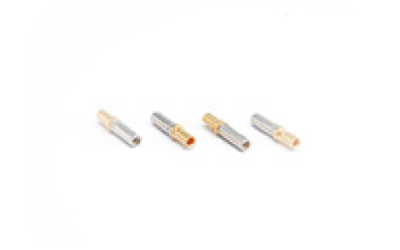

Socket Contacts

Gold-plated
20-22 AWG AT62-201-2031 Drawing

Features & Benefits

Current Capacity
Size 20, 7.5A (max)

Wire Range
Size 20 contacts will accept wire ranges of 16 thru 22AWG

Operating temperature range
-55°C to +125°C at rated current

Dielectric Value
Meets or exceeds 1500volts minimum

Drop Test
Shall not become detached or loosened when placed at 750mm and dropped to concrete eight times

Shock
No latch disengagement or discontinuity shall be the result when subjected to 50 g’s in each of three axis (X, Y & Z)

Vibration
Continued continuity without degradation to mechanical or physical attributes following vibration. (max acceleration 20 g’s at Sine sweep of 10-2000Hz)

Connector Terminal Retention
When subjected to a direct pull, contacts achieve a minimum pull-out force of 89 lbs.

Connector Retention
A mated connector subjected to a pulling force by the exiting wire bundle at 89lbs. times the number of contacts to a maximum of 356 lbs. applying load for 30 seconds.

Thermal Shock
Subjected to 10 cycles at -55°C to +125°C with no cracking, chipping or other damage detrimental to the normal operation of the connector

Insulation Resistance
1000 megohms minimum at 25°C

Mating Cycle Durability
Following 100 cycles of connection engagement and disengagement, degradation either mechanical or electrical is not evident.

Contact Millivolt Drop
Size 20 (stamped & formed) contacts with 20AWG conductor – 60 mV (solid contact) drop max; 100 mV (stamped & formed contact) drop max at 7.5A test current

Water Immersion
A mated connection, properly wired, placed in an oven at +125°C for 1 hour, then placed immediately in a depth of water 1 meter for 4 hours without loss of electronic performance

Product Material

Housings
Thermoplastic

Seals
Silicone Elastomer

Secondary Locks
Thermoplastic

Contacts
Copper Alloy, Nickel Plated, Gold optional
