eco|mate®

Circular Plastic Connectors

In design and conception the Ecomate® program meets the high requirements for applications in industrial technology. Easy operation, reduced dimensions and a more robust design are only a few of the features of the series. The connector’s main area of application is in the fields of plant construction and machine building. The connector is used for measuring and controlling applications as well as for power supply. technology. The series is comprised of a large selection of housings and shapes and offers models with screw, solder and crimp termination.

Specifications »

Type

Gender

Contact Layout

Orientation

Termination

Options

Contact Type

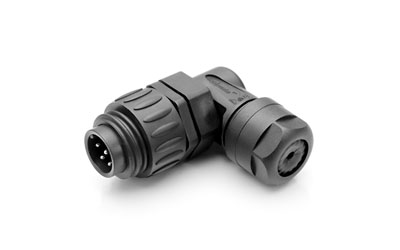

Male 6+PE Cable Connector

Strain Relief with Clamping Ring
Solder Termination

C01630K00610012

Black Backshell C016 30K006 100 12

Female 6+PE Receptacle

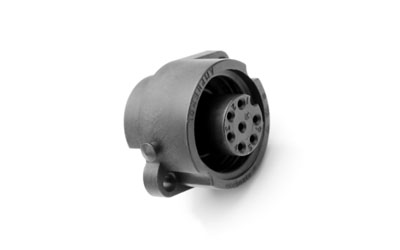

Solder Termination

C01630G00610012

Black C016 30G006 100 12 Drawing

Female 6+PE Cable Connector

Strain Relief
Solder Termination

C01630D00611012

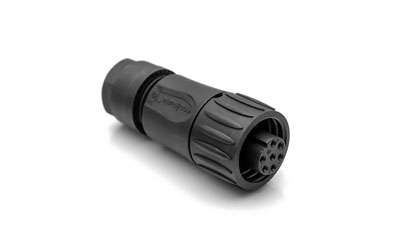

Black Backshell C016 30D006 110 12 Drawing

Female 6+PE Cable Connector

Strain Relief with Clamping Ring
Crimp Termination

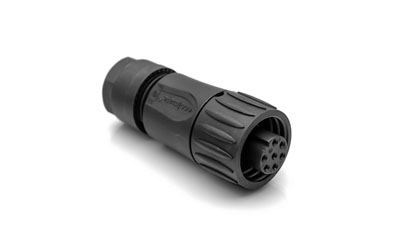

C01610D00600012

Black Backshell C016 10D006 000 12 Drawing

Female 6+PE Cable Connector

Strain Relief with Clamping Ring
Solder Termination

C01630F00610012

Black Backshell C016 30F006 100 12 Drawing

Male 6+PE Cable Connector

Strain Relief
Solder Termination

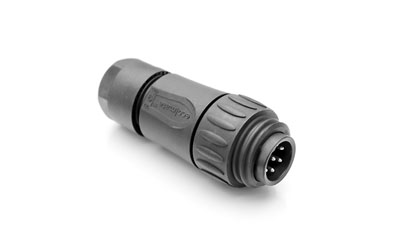

C01630H00611012

Black Backshell C016 30H006 110 12 Drawing

Male 6+PE Receptacle

Solder Termination

C01630C00610012

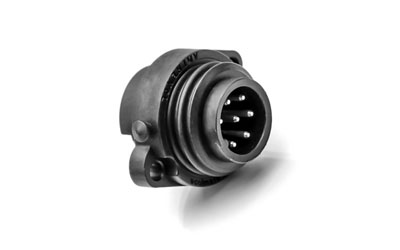

Black C016 30C006 100 12 Drawing

Male 6+PE Cable Connector

Strain Relief with Clamping Ring
Crimp Termination

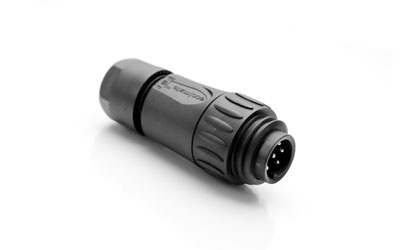

C01610H00600012

Black Backshell C016 10H006 000 12 Drawing

Female 3+PE Receptacle

Screw Termination

C01620G00310012

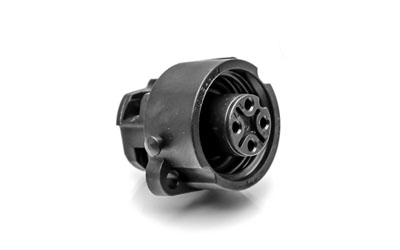

Black C016 20G003 100 12 Drawing

Female 3+PE Cable Connector

Strain Relief
Screw Termination

C01620D00311010

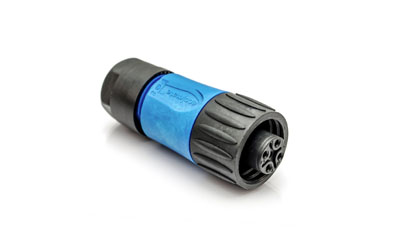

Blue Backshell C016 20D003 110 10 Drawing

Female 3+PE Cable Connector

Strain Relief
Screw Termination

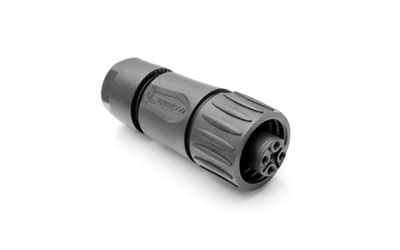

Black Backshell C016 20D003 110 12 Drawing

Male 3+PE Cable Connector

Strain Relief
Screw Termination

C01620H00311010

Blue Backshell C016 20H003 110 10 Drawing

Male 3+PE Cable Connector

Strain Relief
Screw Termination

C01620H00311012

Black Backshell C016 20H003 110 12 Drawing

Male 3+PE Receptacle

Screw Termination

C01620C00310012

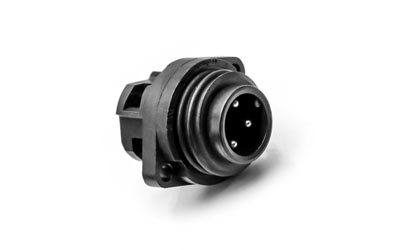

Black C016 20C003 100 12 Drawing

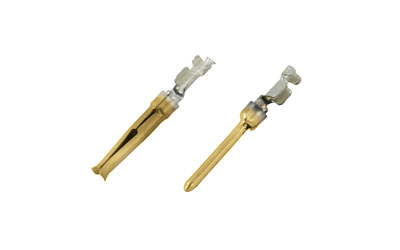

Pin Contacts

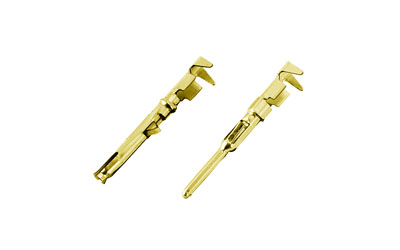

0.5 to 1.5mm2 VN 01 016 0004 (2)

Socket Contacts

0.14 to 0.5mm2 VN 02 016 0003 (1)
0.5 to 1.5mm2 VN 02 016 0002 (1)

Socket Contacts

0.5 to 1.5mm2 VN 02 016 0002 (2)

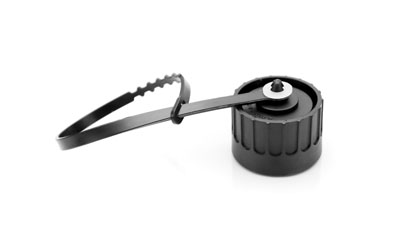

Male Cable Connector Protective Cover

C01600U00001012

Black C016 00U000 010 12 Drawing

Male Receptacle Protective Cover

C01600U00000012

Black C016 00U000 000 12 Drawing

Female Cable Connector Protective Cover

C01600V00001012

Black C016 00V000 010 12 Drawing

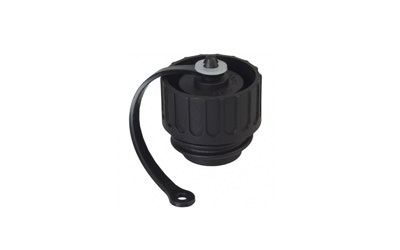

Female Receptacle Protective Cover

C01600V00000012

Black C016 00V000 000 12 Drawing

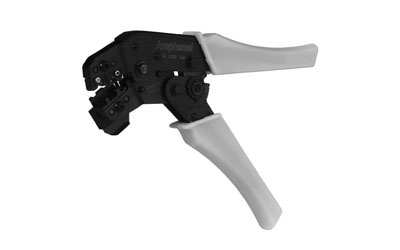

Hand Crimping Tool

Standard TA 0100 146

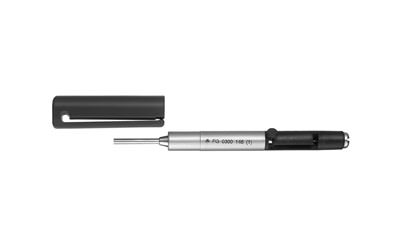

Front Release Removal Tool

For use with ecomate contacts: .N01 016 0011(.) .N01 016 0004(.) .N02 016 0003(.) .N02 016 0002(.) FG 0300 146 1

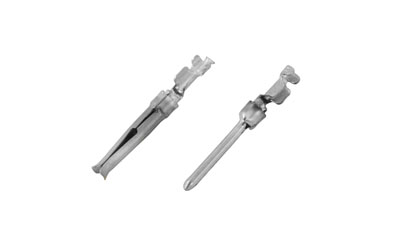

Pin Contacts

0.14 to 0.5mm2 VN 01 016 0011 (1)
0.5 to 1.5mm2 VN 01 016 0004 (1)

Features

  • Circular Connectors with 3+PE and 6+PE contacts
  • Housing components made from premium molding material
  • Cable housing straight or angled
  • Protection class IP 65/67 in mated condition in accordance with DIN EN 60526
  • Clamping ring or internal strain relief
  • UV, Corrosion and Vibration Resistant
