ATV Series

Available in 18 position

Amphenol Sine systems’ ATV Series™ connectors further expands the proven reliability of the AT Series™ with a compact 18 position sealed flange design. The durable, thermoplastic housings feature built-in contact sealing to eliminate individual wire-sealing grommets, while an integrated interfacial seal protects mated connectors. The ATV Series™, IP68 rated (in mated condition), is perfectly suited to on and off highway applications, marine, industrial, and agriculture markets in harsh environments.

Features

  • 18 Position cavity arrangement
  • Rectangular, thermoplastic housing
  • IP68 rated (in mated condition)
  • Accepts contact size 16 (13A)
  • 14-22AWG

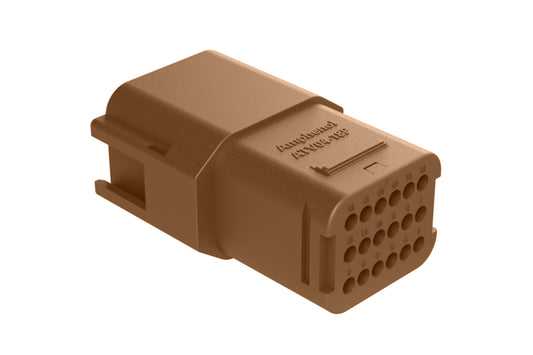

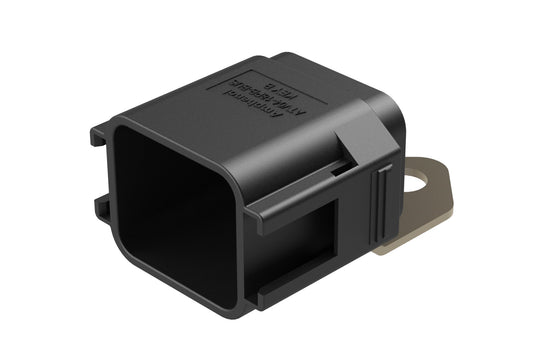

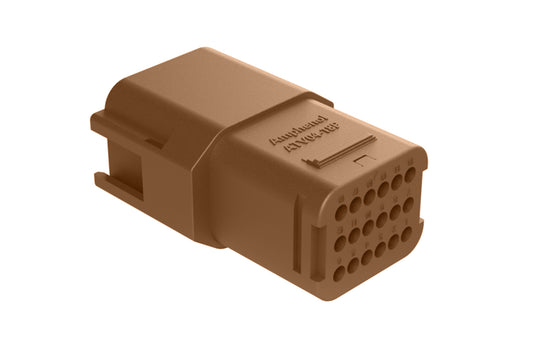

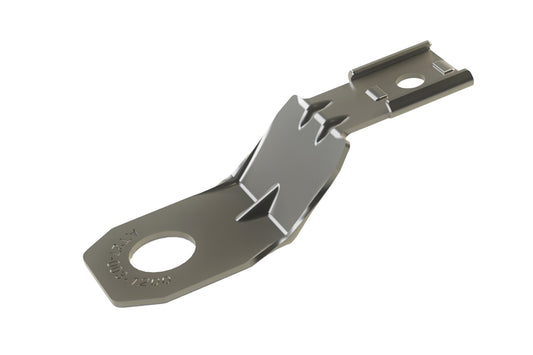

  • Flange Mount or In-line (Flangeless) Capability
  • Integrated latch for mating

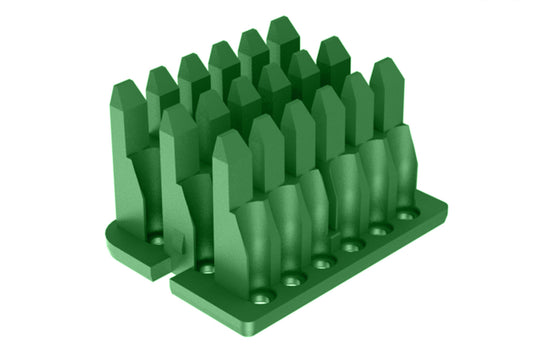

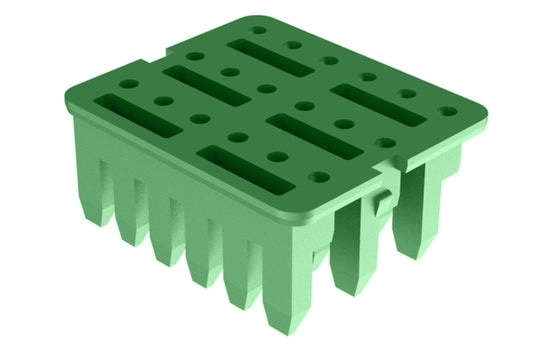

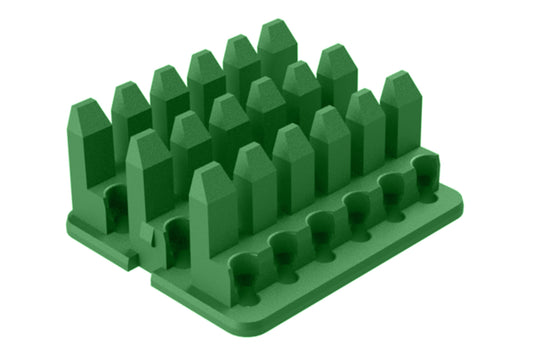

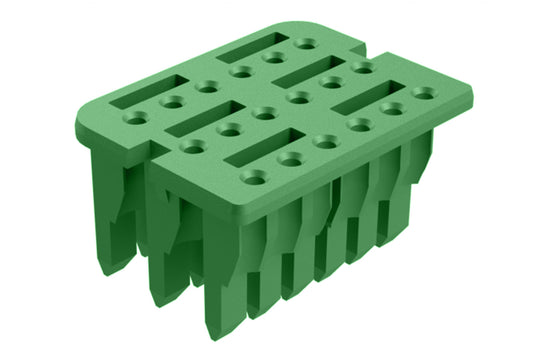

  • Integrated wedgelock confirms contact alignment/retention
  • Available in custom color options

Applications: On/Off Highway, Marine, Industrial, and Agriculture Markets in Harsh Environments.

Assembly Instructions: ATV Series Assembly Instructions
