RJ45 Industrial

Connector Solutions

RJ45 industrial connectors for harsh environments.

Downloads »

Type

Plug

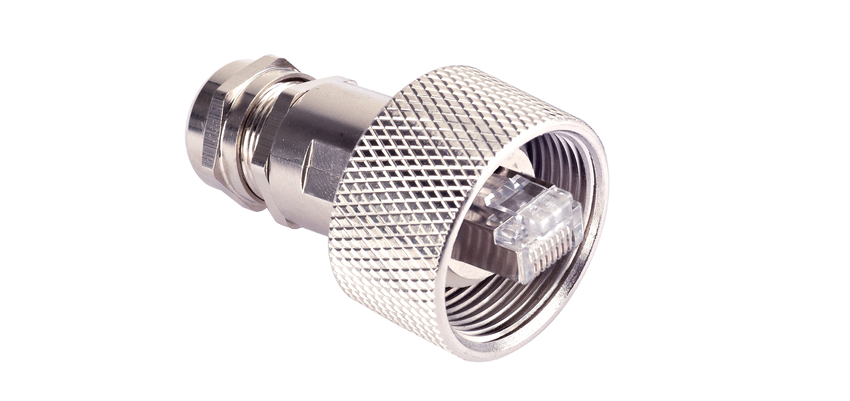

17-100944

RJ45 Metal Coupling Ring / Plastic Body Kit 17-100944 Drawing

Receptacle

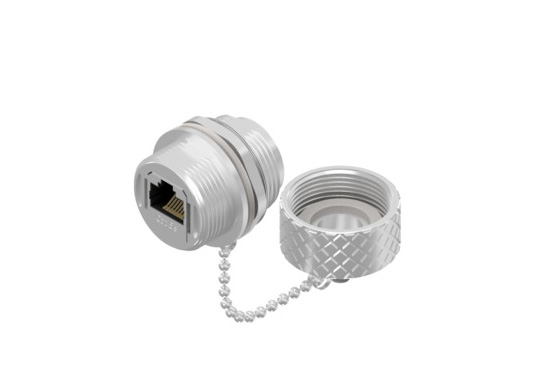

RJ45 Jamnut, Zinc Die-Cast, Shielded, M28 with Cap 17-101604 Drawing

Receptacle

RJ45 Jamnut, Plastic Shielded with Cap 17-10000 Drawing

Plug

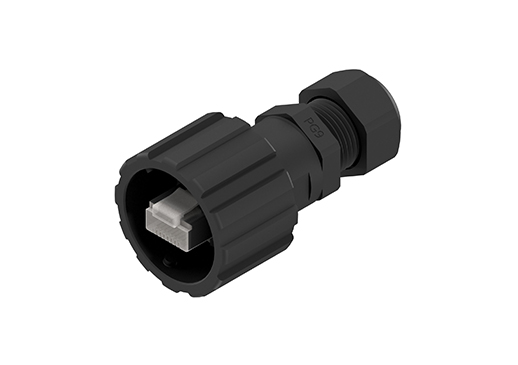

RJ45 Plastic Plug Kit 17-10001 Drawing

Receptacle

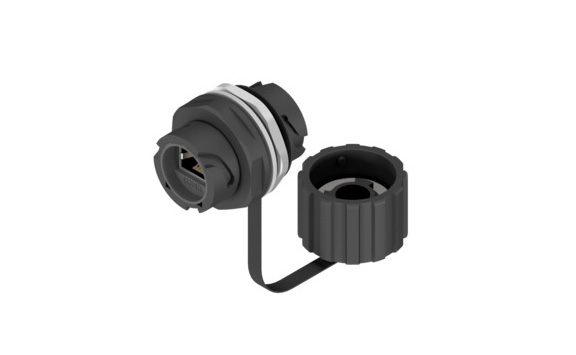

RJ45 Jamnut, Plastic Shielded Feedthrough with Cap 17-110024 Drawing

Receptacle

RJ45 Jamnut, Zinc Die-cast, Shielded with Cap 17-101814 Drawing

Plug

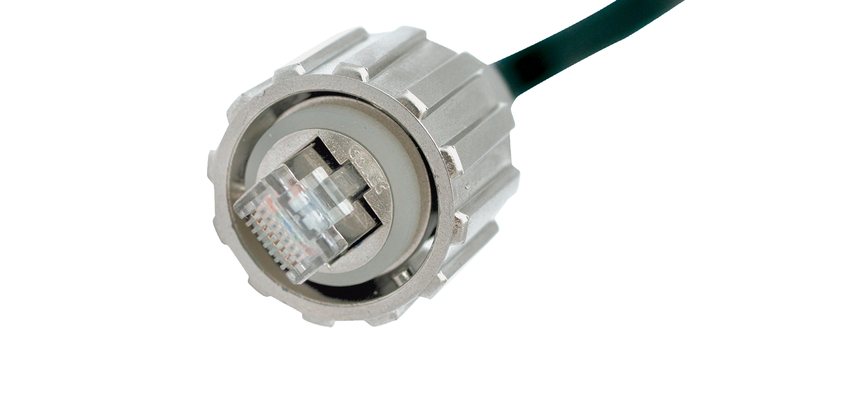

RJ45 Plug Kit Zinc Die-cast 17-10044 Drawing

Tool

RJFODE

Insert & Removal Tool RJF ODE

Cap

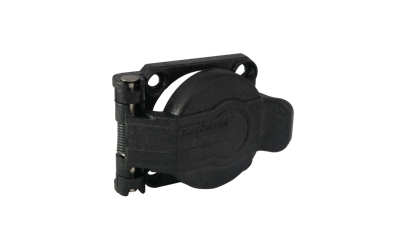

RJFSCC

Plastic self closing to suit RJF21B RJF SCC

Cap

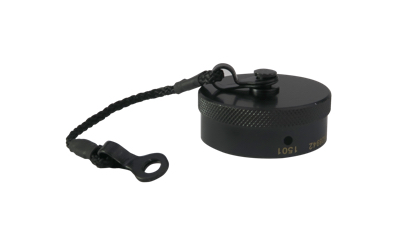

RJFC2B

Metallic to suit RJF21B RJFC 2 B

Cap

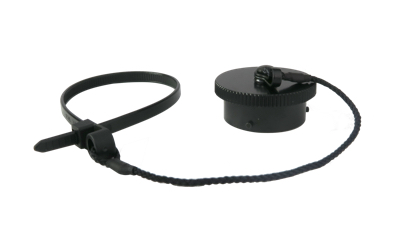

RJFC6B

Metallic, to suit RJF6B / RJF6MB RJFC 6 B

Gasket

To suit RJF21B and RJF SCC JE18

Receptacle

RJF21B

Square flange, Female RJ45 back termination RJF 2 1 B

Plug

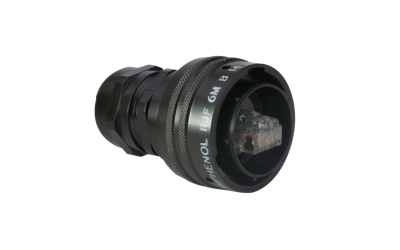

RJF6MB

PG16 Metal Gland RJF6MB

Plug

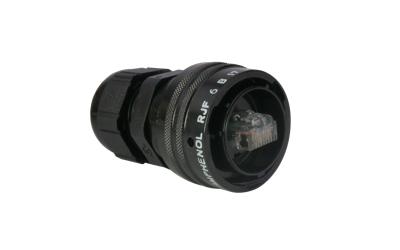

RJF6B

PG16 Plastic Gland RJF 6 B

Features

  • Cat 5e to EIA/TIA-568-B.2
  • Bayonet coupling
  • Robust metallic or plastic shells
  • RJ45 cordset retention in the plug: 100 N in the axis for RJF series
  • Mating cycles: 500 min
  • Sealed against fluid and dust (IP67 or IP68 options when mated)
  • Shock, Vibration and Traction resistant
  • No cabling operation in the field and no tools required for RJF Series
  • Mechanical Coding / Polarization (RJF Series 4 positions)
  • Compatible with cable diameter from 6 mm to 13 mm for RJF Series
  • Compatible with cable diameter from 4.83 mm to 6.73 mm for 17 Series
  • Refer to specifications for full details on each series
