Rectangular, Thermoplastic Connectors for Harsh Environment Applications

Available in 26 and 34 position

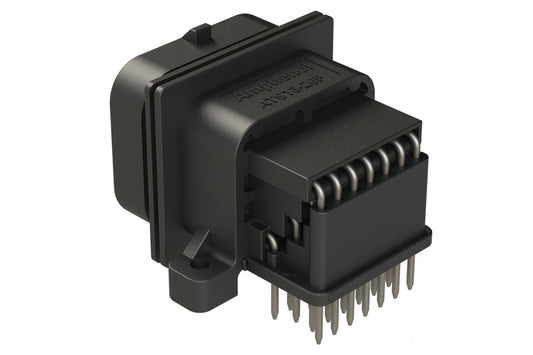

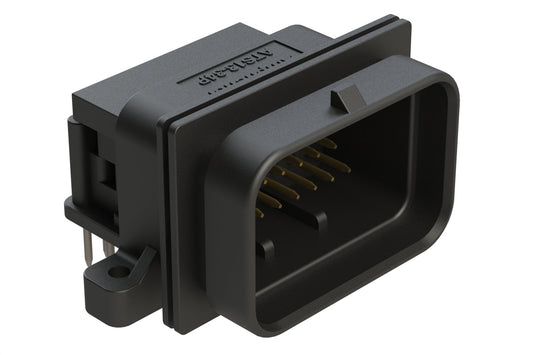

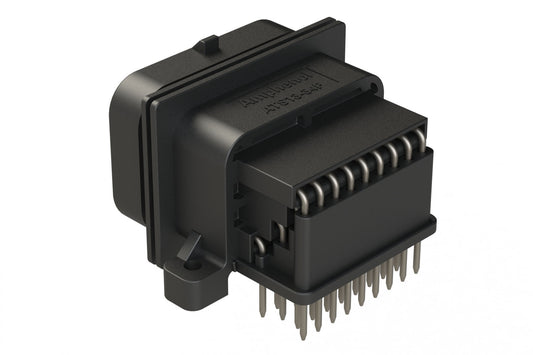

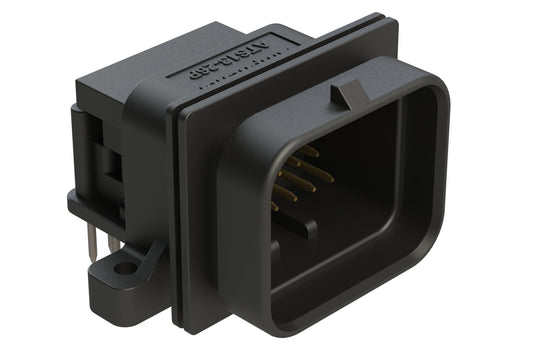

Amphenol Sine Systems’ ATS Series™ Connectors are a high-performance, IP67 and IP69K rated (in mated condition), rectangular, thermoplastic, cost-effective solution for harsh environmental applications with superior seals and seal retention capabilities. The connector design incorporates an integral latching system that ensures a definitive electrical and mechanical connection. Receptacles are available in both 90° right angle and 180° straight pin PCB options, as well as traditional in-line options, and have been developed to be compatible with existing standard products industry-wide.  ATS Series™ connectors utilize precision-engineered, 3-tang contacts featured in our ecomate® Family of products. Available in Plugs, Inline Receptacles, Flange Mount Receptacles and PCB Receptacles with BoardLock™.

Key Features

• IP67 and IP69K rated (in mated condition)
• Integrated TPA design, ensures contact alignment and retention
• Available in A and B keying options
• Utilizes ecomate® 1.0 mm receptacle common contacts
• Compatible with existing standard products industry-wide

Applications: Harsh Environment, Agricultural Machinery, Automobiles, Military, New Energy, Railways, Navigation and other demanding interconnect applications

Assembly Instructions ATS Series Assembly Instructions
