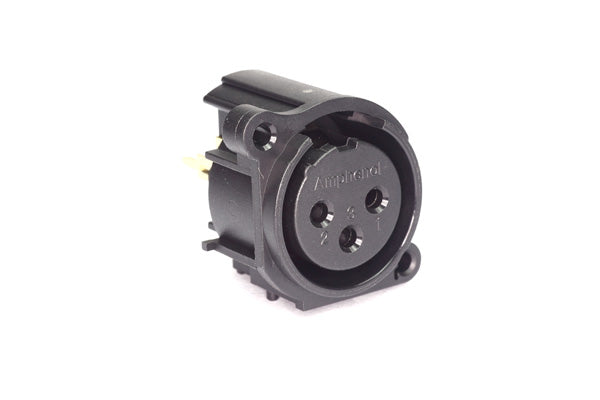

AC3FAVL-AU-PRE 3 Pole XLR Female ChassisMount, AType, Gold Contacts, Black Finish, Vertical PCB, Latchless, No Ground Link. Comparable part no: NC3FAV-0, NC3FAAV-0
AC3FAVL-AU-PRE 3 Pole XLR Female ChassisMount, AType, Gold Contacts, Black Finish, Vertical PCB, Latchless, No Ground Link. Comparable part no: NC3FAV-0, NC3FAAV-0
IMAGE MAY DIFFER
SKU:AC3FAVL-AU-PRE
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 3Gender: Female
Finish: Black
Current Carrying Capacity: 6A
IP Rating: IP40
Contact Plating: 0.05μm gold over 2μm nickel
Termination: Printed Circuit Boards (PCB)
Flammability Rating: UL94V-0
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Service Voltage RMS: 133V ( Not suitable for domestic applications above 50V)
Test Voltage AC RMS: 1500V
Typical Contact Resistance: <5mΩ
Insulation Resistance: 2GΩ
Operating Temperature: -25˚C to +75˚C (-13°F to +167°F)
Mating Cycle Durability: 1500
Housing Material: Diecast Zinc Alloy
3 Pole XLR Female Chassis Mount, A Type, Gold Contacts, Black Finish, Vertical PCB, Latchless, No Ground Link
