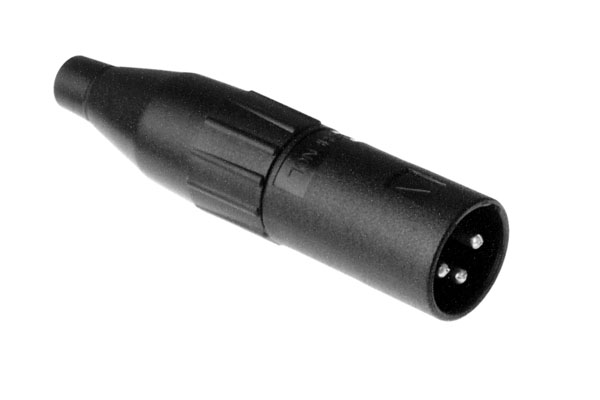

AC3MCP 3 Pole XLRMale Cable Connector,Thermoplastic Shell,Machined Contacts, Black. Comparable part no: APF

Name: AC3MCP 3 Pole XLRMale Cable Connector,Thermoplastic Shell,Machined Contacts, Black. Comparable part no: APF
Brand: Amphenol Audio
SKU: AC3MCP
Availability: InStock

IMAGE MAY DIFFER

SKU:AC3MCP

$0.00 AUD

Sale Sold out

Quantity

Stock Level

Stock levels vary — Contact us for details

Downloads

Datasheet
Assembly Instructions

Specifications

No. of Positions: 3
Gender: Male
Finish: Black
Current Carrying Capacity: 15A
IP Rating: IP40
Contact Type: Machined
Contact Plating: Silver
Termination: Solder
Max Wire Gauge: 14AWG
Flammability Rating: UL94V-0
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Service Voltage RMS: 133V (not suitable for domestic applications above 50V)
Test Voltage AC RMS: 1400V
Typical Contact Resistance: < 3mΩ
Insulation Resistance: < 1GΩ
Operating Temperature: -25˚C to +75˚C (-13°F to +167°F)
Mating Cycle Durability: 1000
Housing Material: Thermoplastic, UL94V-0 Modified PPE Resin

3 Pole XLR Male Cable Connector, Thermoplastic Shell, Machined Contacts, Black
