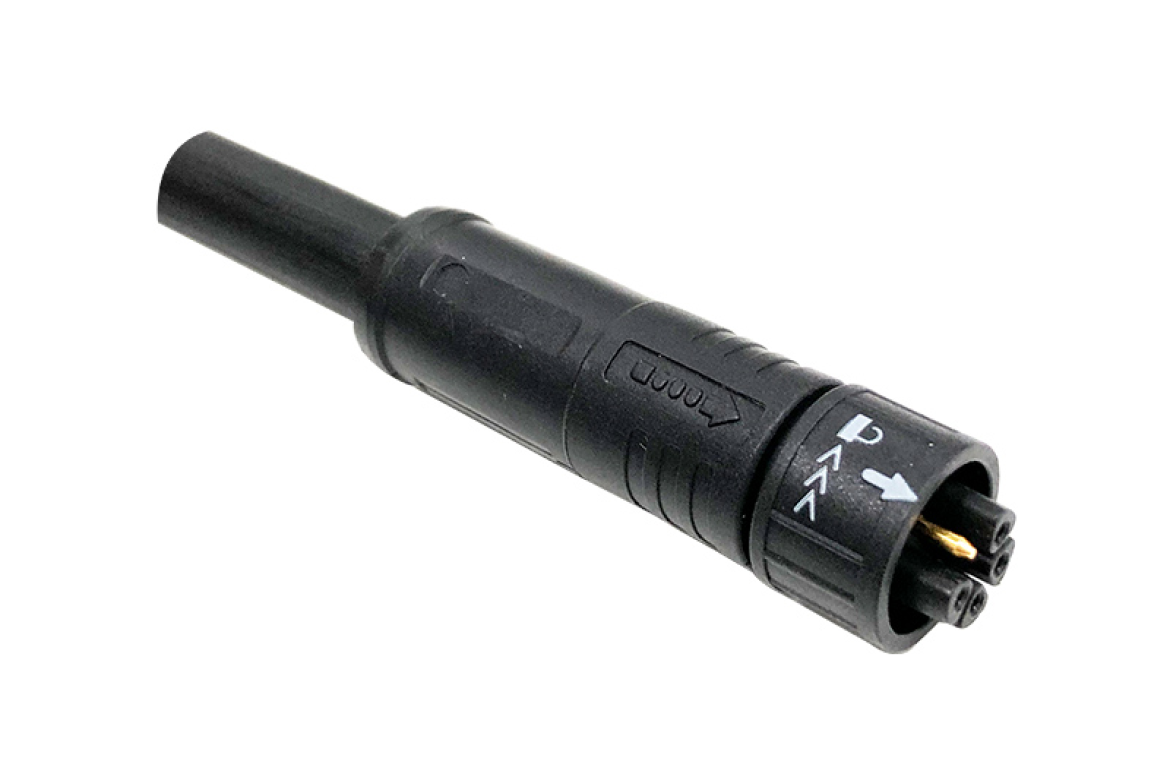

AG-05BFGM-QL8G01 X-Lok Push Lock Connector
AG-05BFGM-QL8G01 X-Lok Push Lock Connector
IMAGE MAY DIFFER
SKU:AG-05BFGM-QL8G01
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Specifications
No. of Positions: 05Contact Material: Plastic, Non-shielded
AWG: 14 AWG
Amperage: 16A
IP Rating: IP68
Operating Temperature: -20°C ~ +85°C
Mating Cycle Durability: 1000
Shape: Straight
Cable Diameter: Φ10.0mm
Connector Gender: Female
Contact Gender: Female (Power) + Male (Ground)
Salt Spray: 48h hours
Operating Voltage: 630V
Receptacle Nut Thread: N/A
Mating Style: Push Lock
Fasten Style: N/A
Assembly Style: N/A
Length (mm): 1000
Panel Thickness: N/A
X-Lok, Mini Size, Plastic, 16A, 05 pins, Female Connector, Female (Power) + Male (Ground) Contact, Straight, Push Lock, Overmolded, Length 1000mm, IP68 Mated
