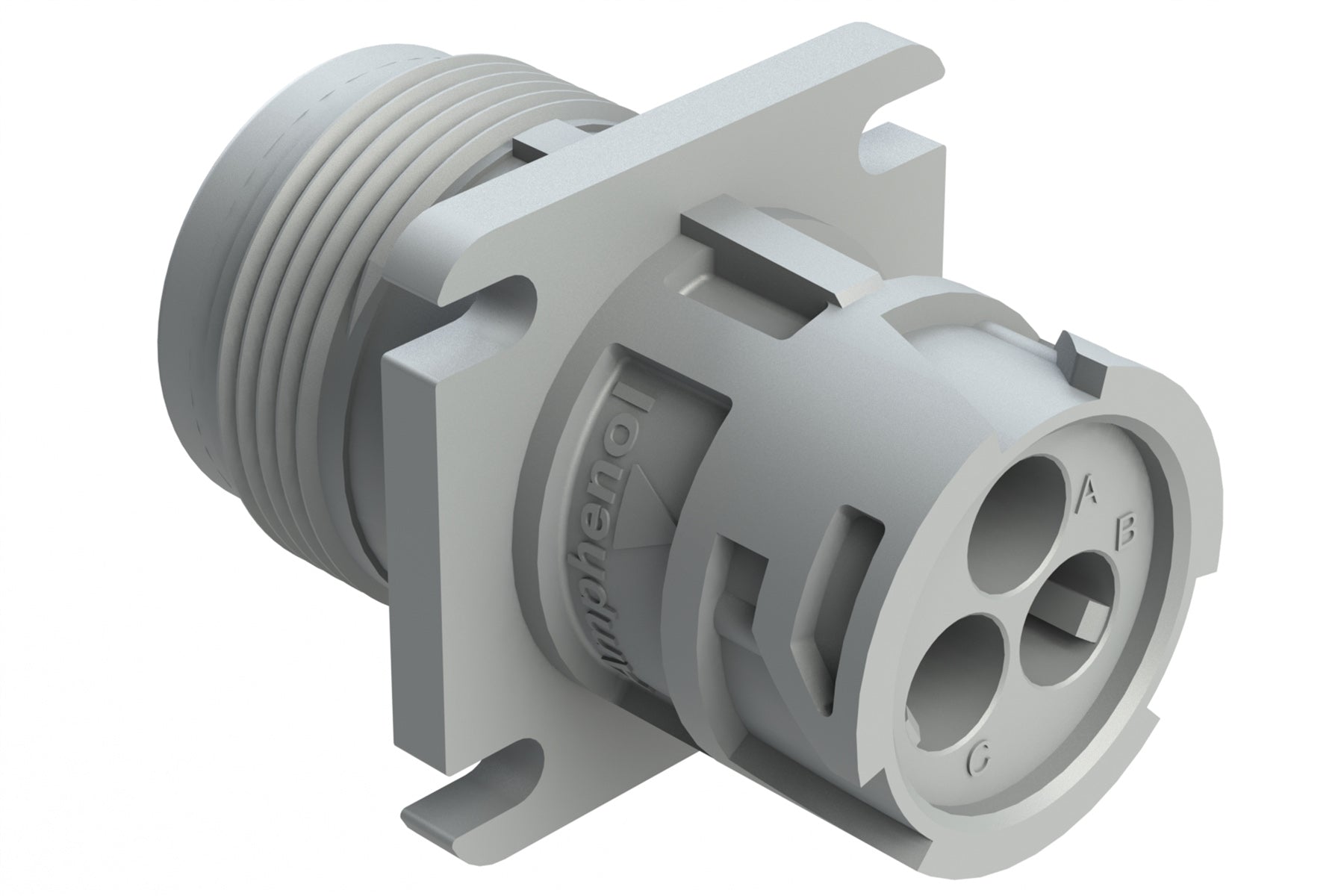

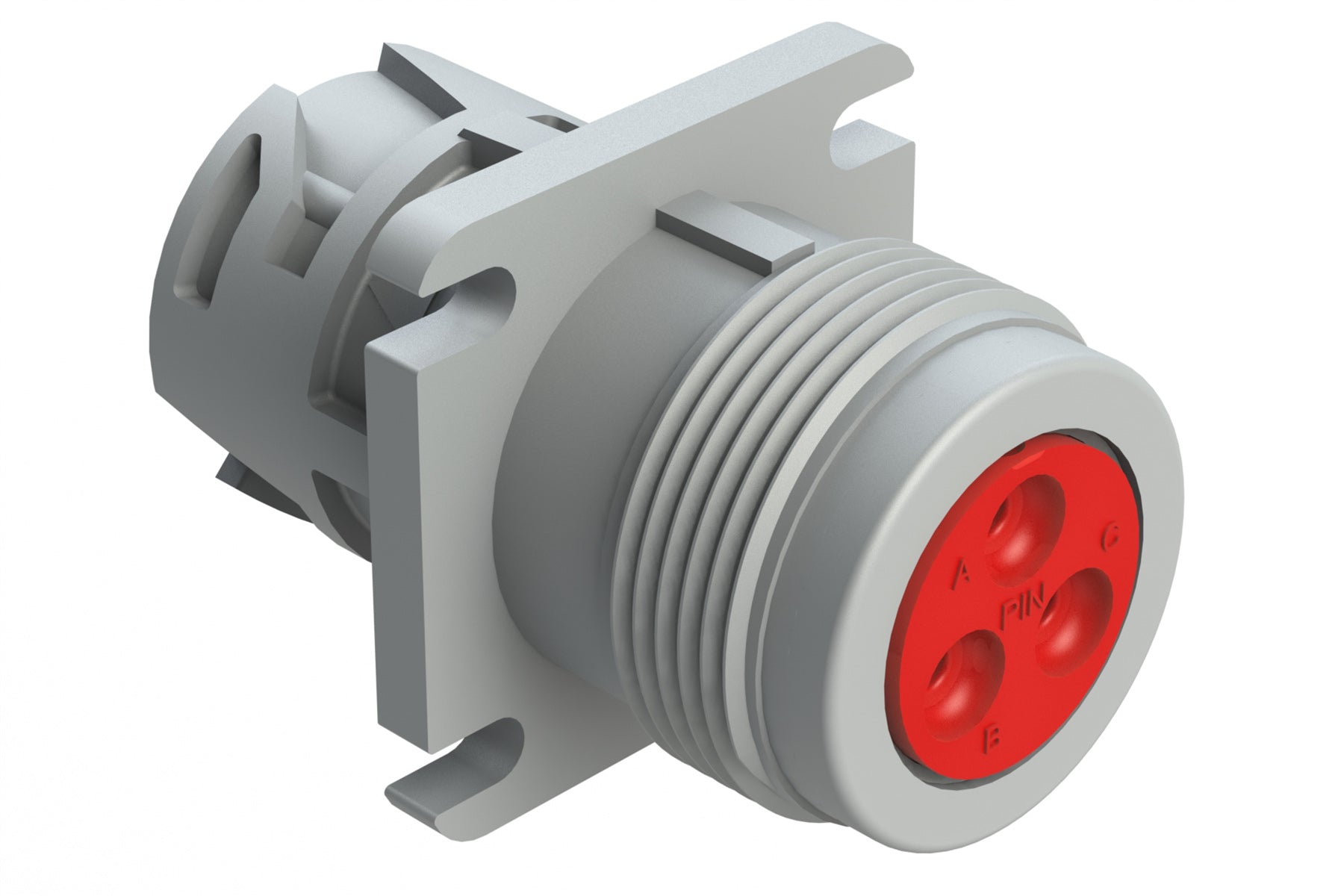

AHD10-3-96P 3 Position Receptacle, Pin, Size 16 Contacts, Flange, Coupling Ring, Grey
AHD10-3-96P 3 Position Receptacle, Pin, Size 16 Contacts, Flange, Coupling Ring, Grey
IMAGE MAY DIFFER
SKU:AHD10-3-96P
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 3Gender: Male
Contact Size: 16
Amperage: 13A
Colour: Grey
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 megohms min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHD16-3-96S*
Shape: Circular
3 Position Receptacle, Pin, Size 16 Contacts, Flange, Coupling Ring, Grey
