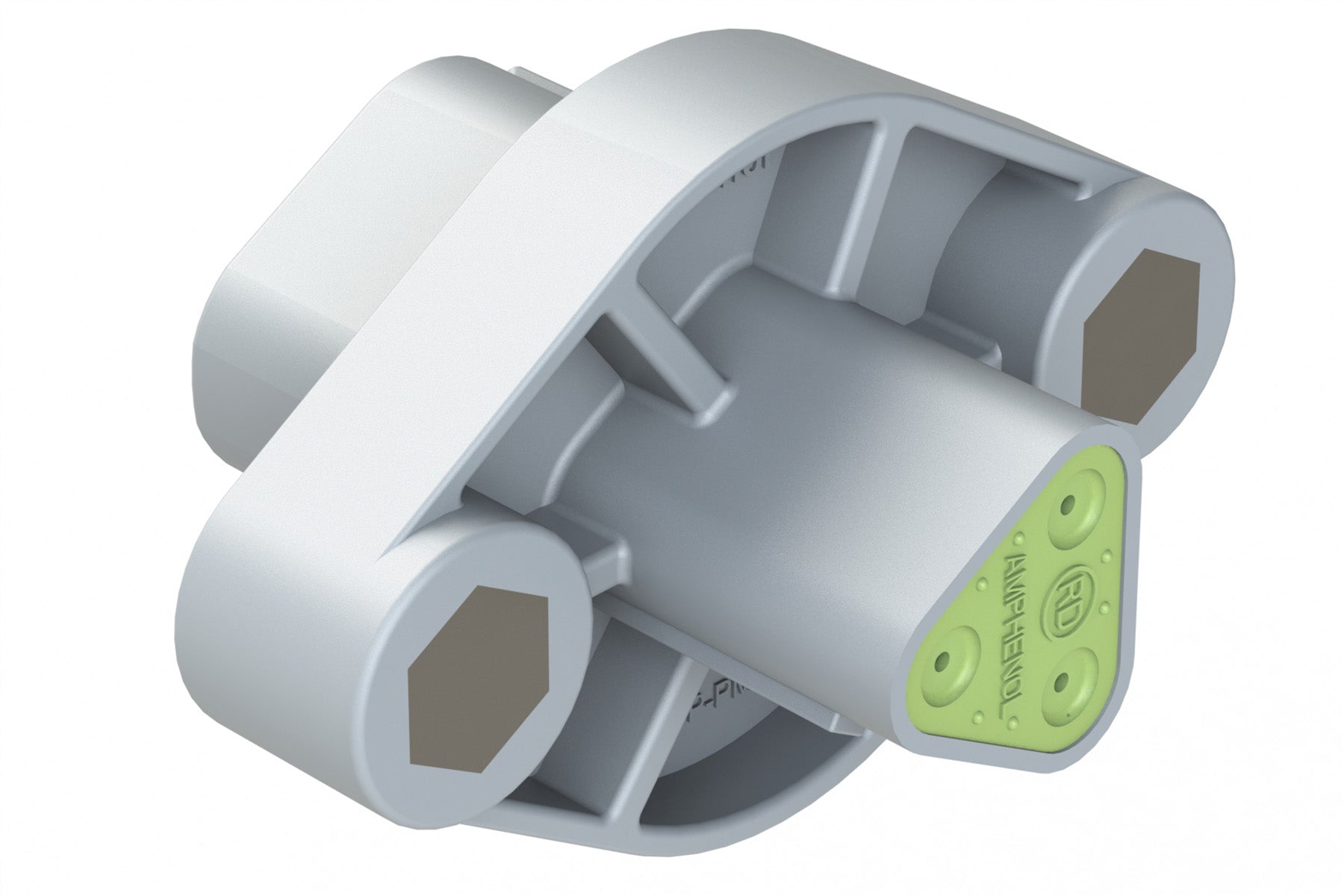

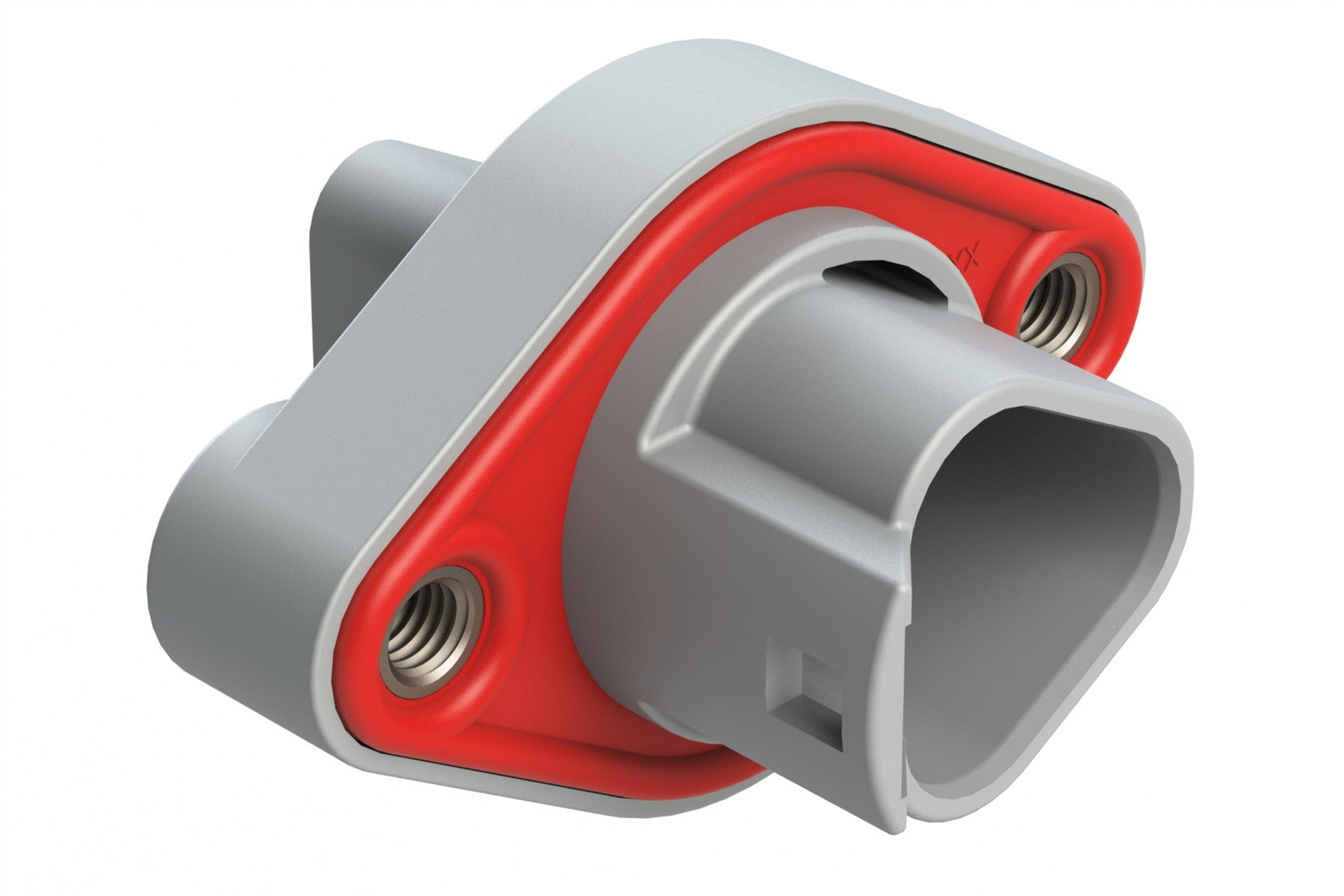

AT04-3P-PML06 3 Position Panel Mount Receptacle with Vertical Flange, Pin, Threaded Insert, Integrated Latch, Gasket, Reduced Diameter Rear Seal, Grey
AT04-3P-PML06 3 Position Panel Mount Receptacle with Vertical Flange, Pin, Threaded Insert, Integrated Latch, Gasket, Reduced Diameter Rear Seal, Grey
IMAGE MAY DIFFER
SKU:AT04-3P-PML06
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Assembly Instructions
Specifications
No. of Positions: 3Gender: Male
Contact Size: 16
AWG: 14-20
Amperage: 13
Colour: Grey
IP Rating: IP68 (1M of water for a period of 24 hours, mated condition) & IP69k (in mated condition)
Insulation Resistance: 1000 megohms min @ 25°C
Operating Temperature: -55°C to 125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AT06-3S* Plug
Seal Diameter: 1.35mm (.053") - 3.05 mm (.120")
Shape: Rectangular
Mounting Type: Flange Mount
3 Position Panel Mount Receptacle with Vertical Flange, Pin, Threaded Insert, Integrated Latch, Gasket, Reduced Diameter Rear Seal, Grey
