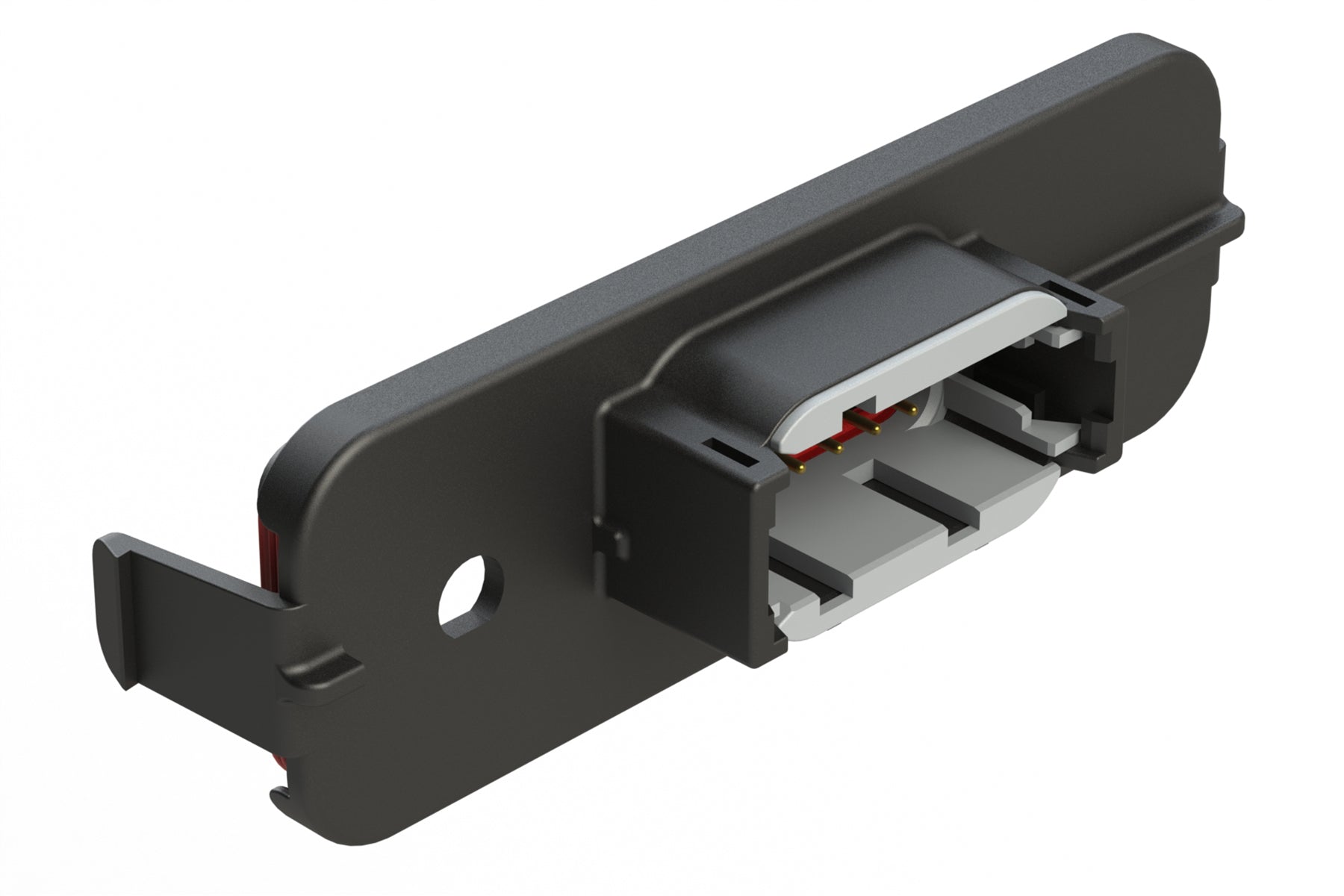

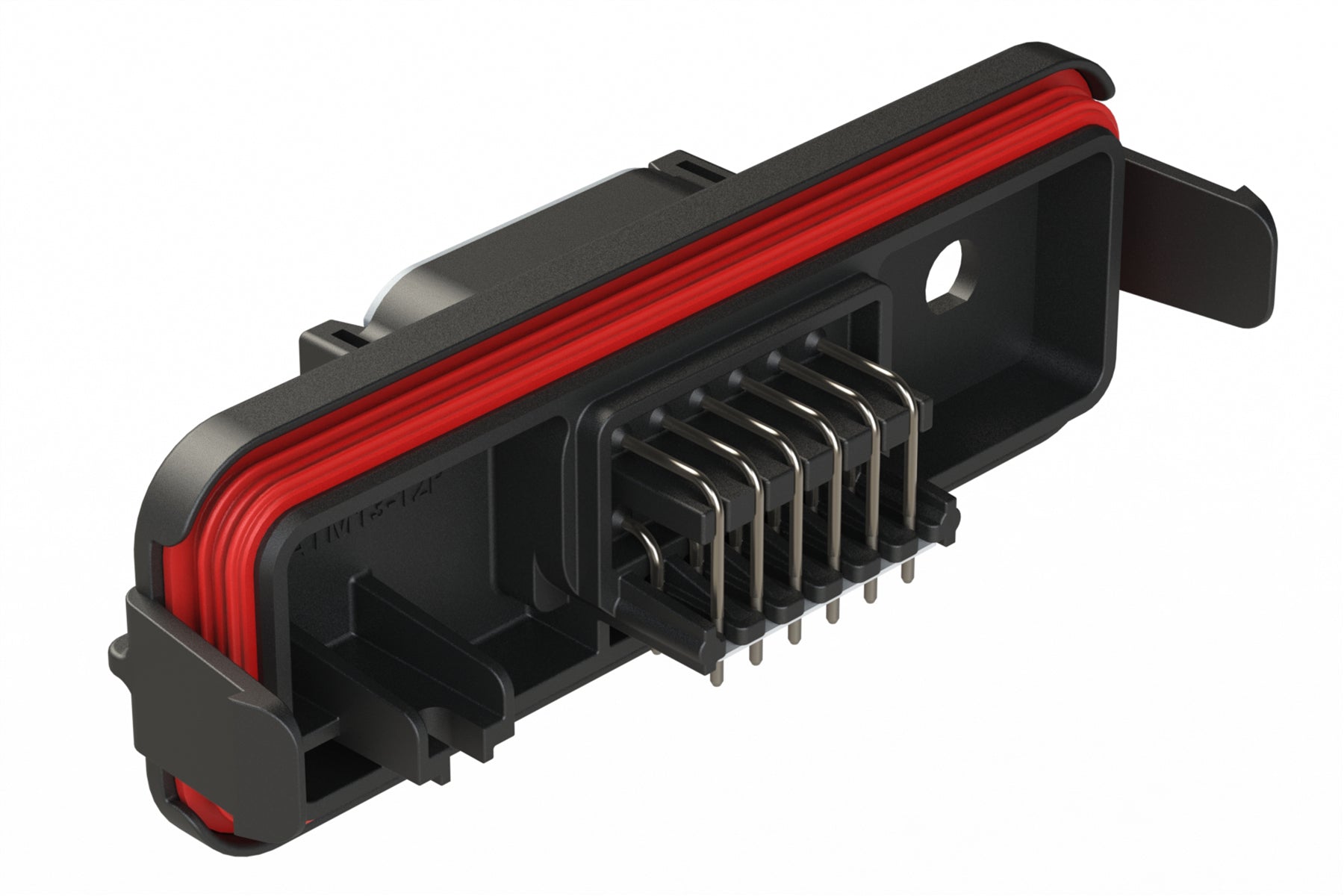

ATM13-12PA-SMA-1 12 Position PCB Receptacle Header, SMA Panel Mount, Right Angle, Size 20 Pin Contacts, Keyed A, Gold/Tin Plating, Black. Used with Armor IPX™ Enclosures
ATM13-12PA-SMA-1 12 Position PCB Receptacle Header, SMA Panel Mount, Right Angle, Size 20 Pin Contacts, Keyed A, Gold/Tin Plating, Black. Used with Armor IPX™ Enclosures
IMAGE MAY DIFFER
SKU:ATM13-12PA-SMA-1
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Assembly Instructions
Specifications
No. of Positions: 12Gender: Male
Contact Size: 20
Contact Material: Copper Alloy
Amperage: 7.5
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition)
Insulation Resistance: 1000 megohms min @ 25°C
Operating Temperature: -55°C to 125°C
Mating Cycle Durability: 100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Shape: Rectangular
Mounting Type: Panel Mount
12 Position PCB Receptacle Header, SMA Panel Mount, Right Angle, Size 20 Pin Contacts, Keyed A, Gold/Tin Plating, Black. Used with Armor IPX™ Enclosures
