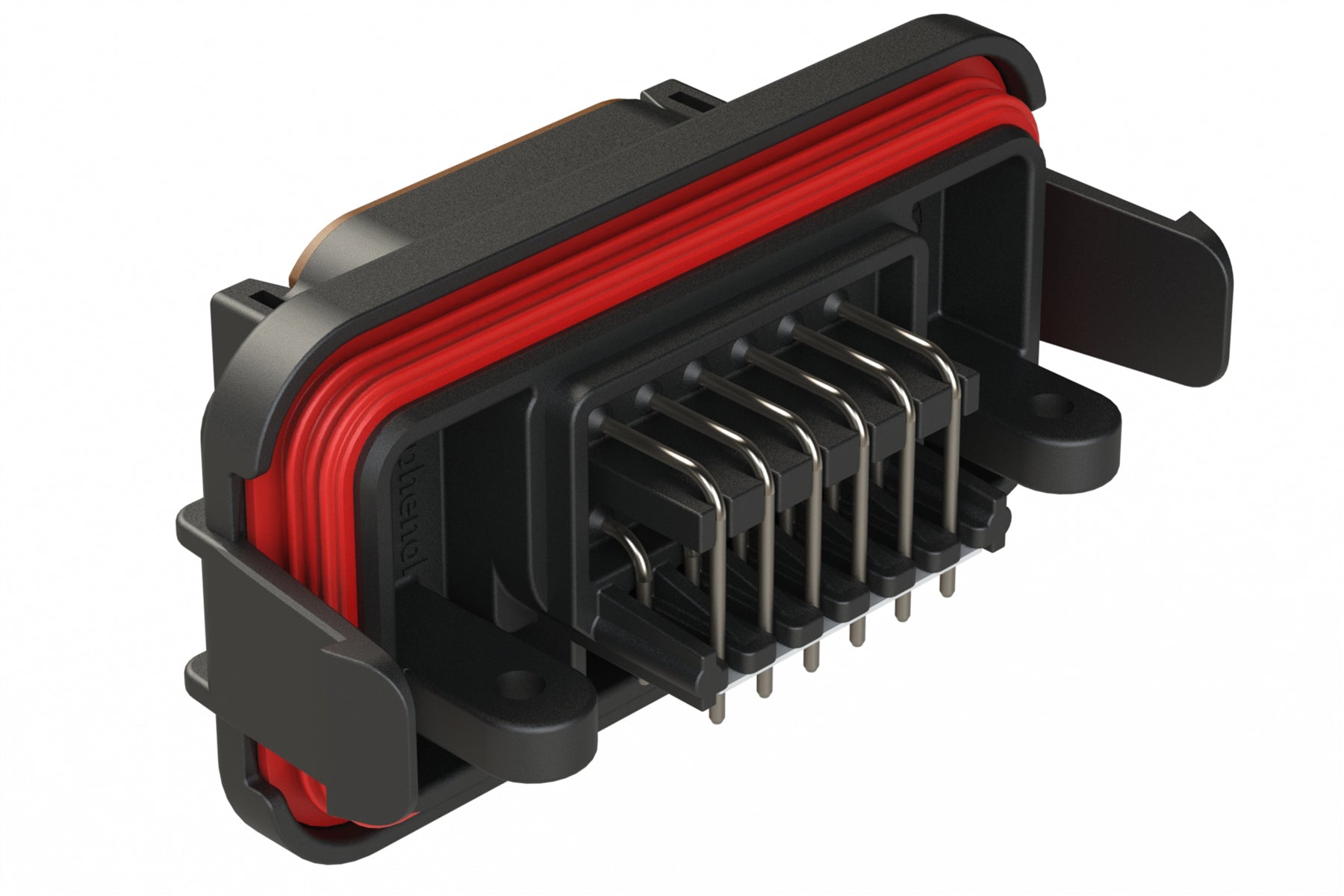

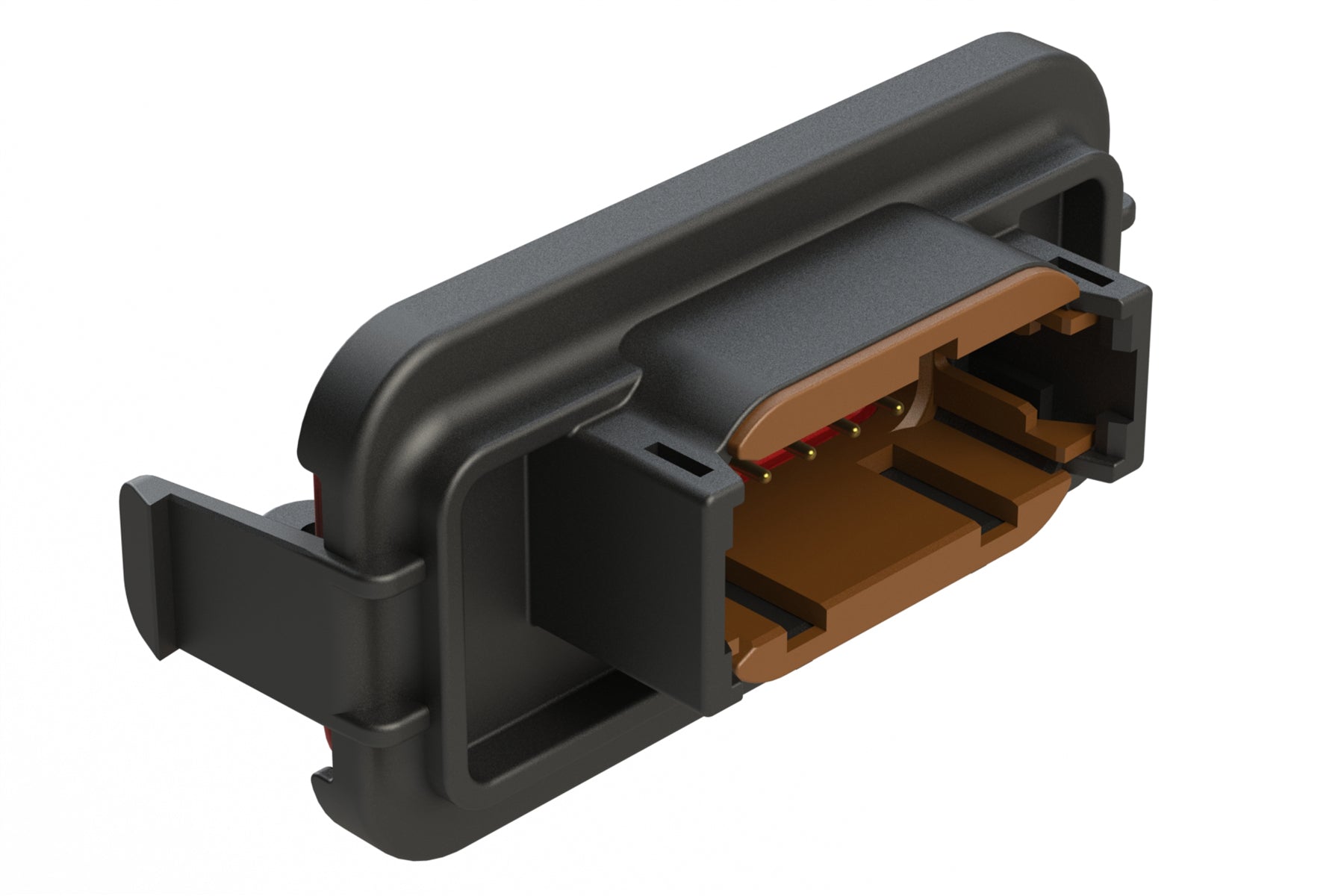

ATM13-12PD-SBH01 12 Position PCB Receptacle Header, Flange Mount, Right Angle, Size 20 Pin Contacts, Keyed D, Gold/Tin Plating, Black. Use with Armor IPX™ Small Enclosures, ATM Connectors
ATM13-12PD-SBH01 12 Position PCB Receptacle Header, Flange Mount, Right Angle, Size 20 Pin Contacts, Keyed D, Gold/Tin Plating, Black. Use with Armor IPX™ Small Enclosures, ATM Connectors
IMAGE MAY DIFFER
SKU:ATM13-12PD-SBH01
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Assembly Instructions
Specifications
No. of Positions: 12, D KeyContact Size: 20
Contact Material: Copper Alloy
Amperage: 7.5
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 megohms min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Shape: Rectangular
12 Position PCB Receptacle Header, Flange Mount, Right Angle, Size 20 Pin Contacts, Keyed D, Gold/Tin Plating, Black. Use with Armor IPX™ Small Enclosures, ATM Connectors
