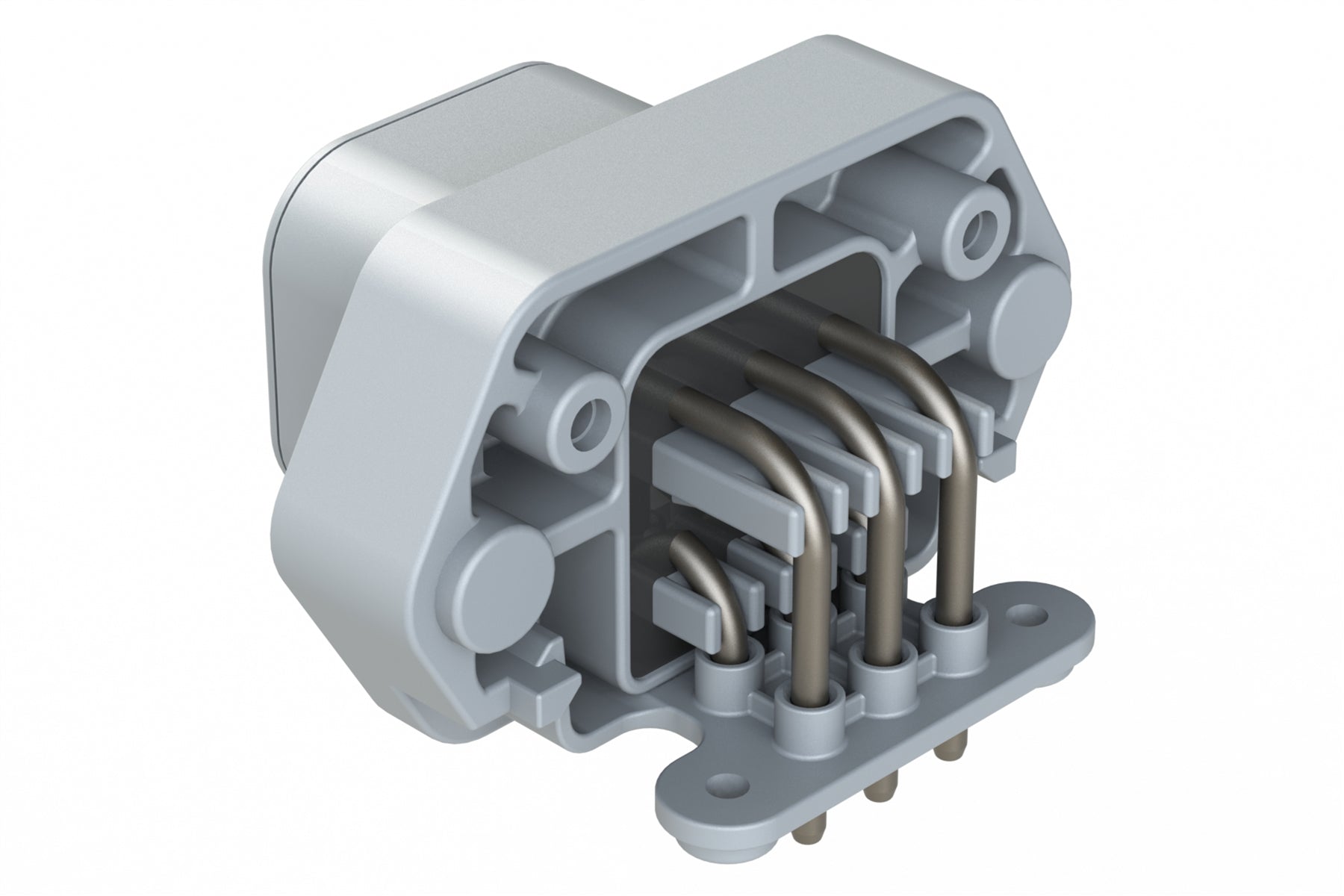

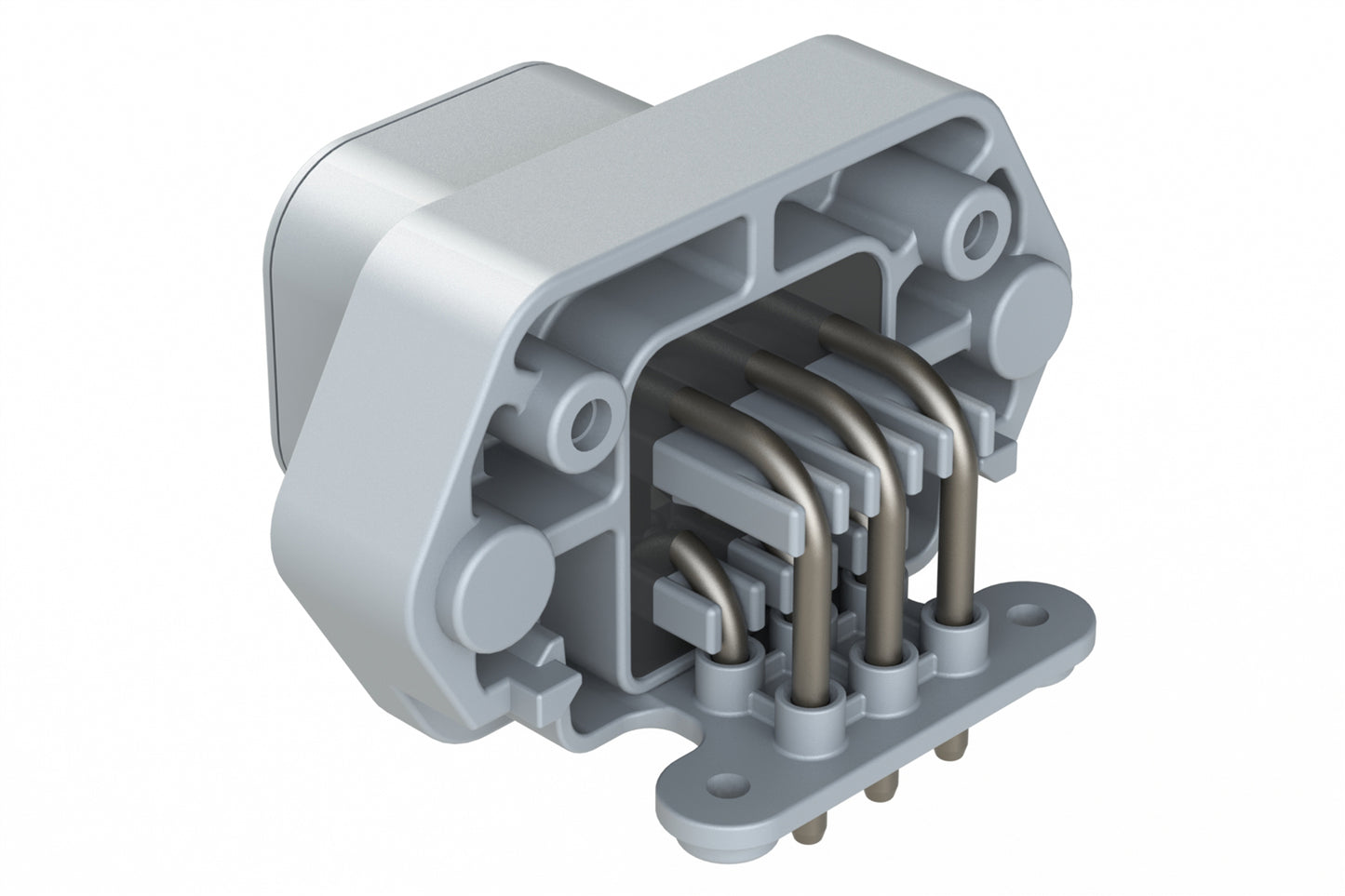

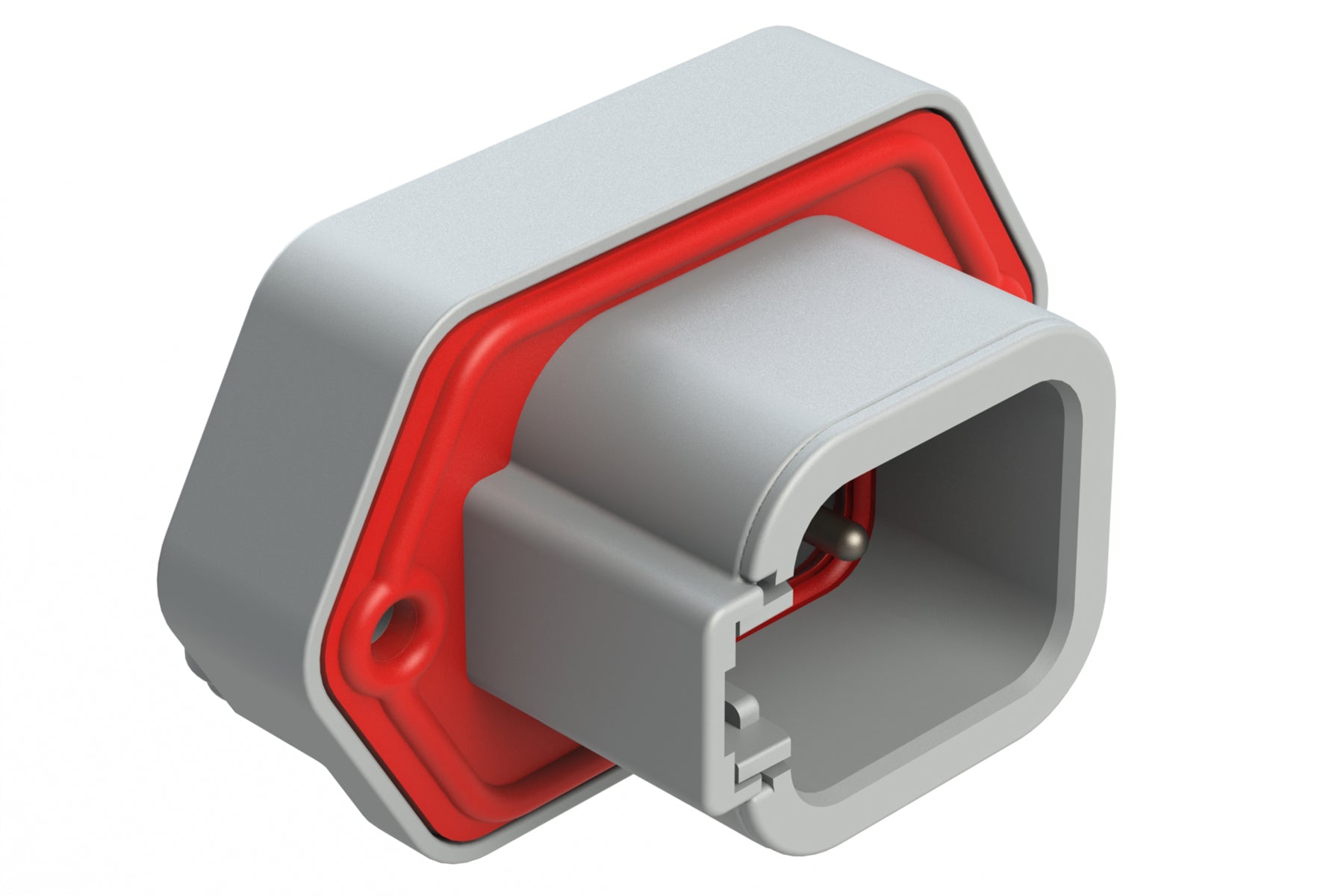

ATP13-6PA-BM04 6 Position 90° PCB Flange Mount Receptacle, Pin, Keyed A, Tin Plating, Potting, Grey
ATP13-6PA-BM04 6 Position 90° PCB Flange Mount Receptacle, Pin, Keyed A, Tin Plating, Potting, Grey
IMAGE MAY DIFFER
SKU:ATP13-6PA-BM04
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Assembly Instructions
Specifications
No. of Positions: 6Gender: Male
Contact Size: 12
Contact Material: Copper Alloy
AWG: 10-14
Amperage: 25A
Colour: Grey
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition), IP69K (in mated condition)
Contact Plating: Tin
Insulation Resistance: 1000 megohms min @ 25°C
Operating Temperature: -55°C to 125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Wire Range: 10-14 AWG (6.0-2.0mm²)
Shape: Rectangular
Mounting Type: Board Mount
6 Position 90° PCB Flange Mount Receptacle, Pin, Keyed A, Tin Plating, Potting, Grey
