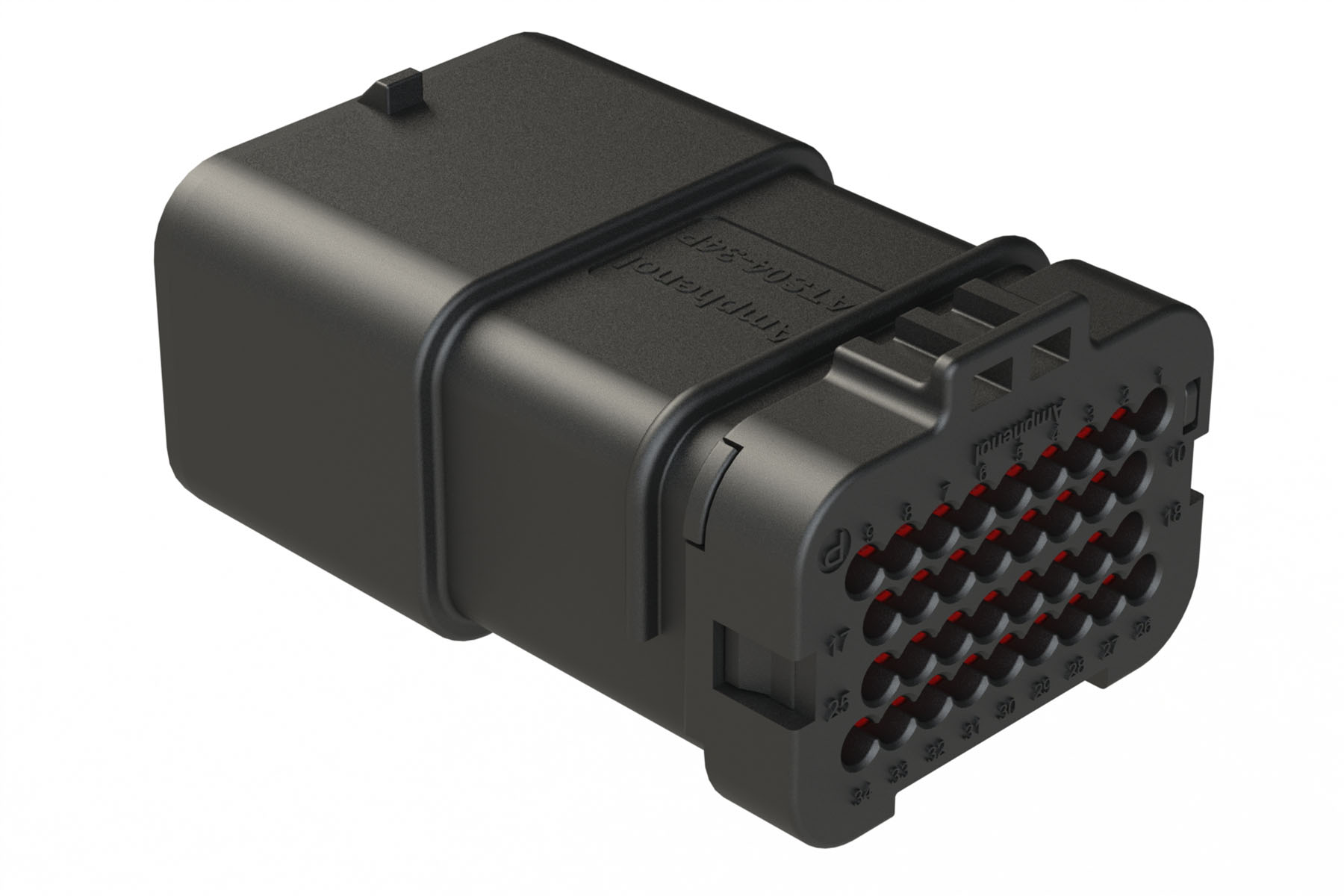

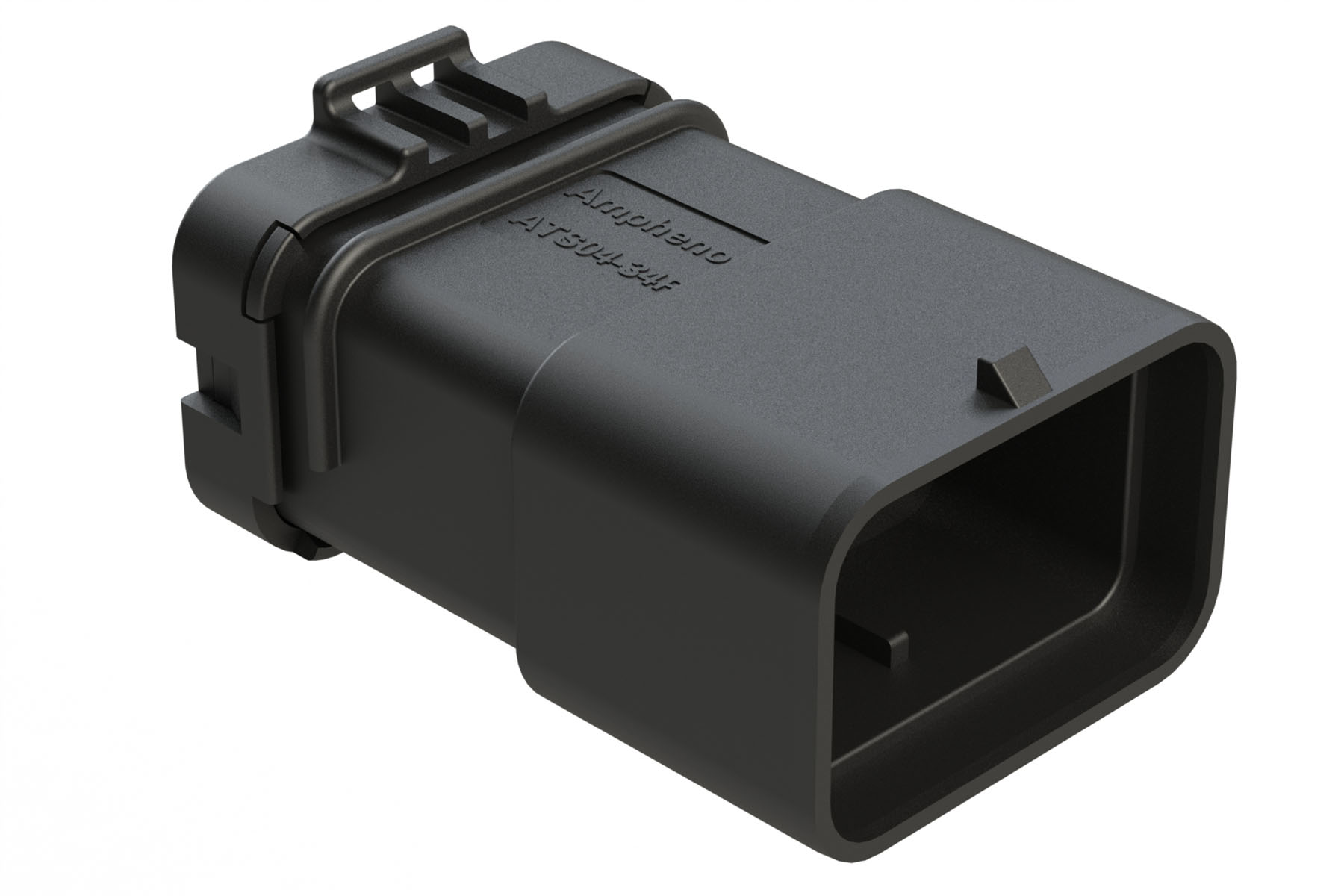

ATS04-34PA2 34 Position Inline Receptacle, Pin, Keyed A, Double Latch, Black
ATS04-34PA2 34 Position Inline Receptacle, Pin, Keyed A, Double Latch, Black
IMAGE MAY DIFFER
SKU:ATS04-34PA2
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 34Gender: Male
Contact Size: 20
Amperage: 7.5 A
Colour: Black
IP Rating: IP67 & IP69K (mated condition)
Insulation Resistance: 1000 megohms min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >500
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATS06-34SA2* PLUG
Wire Range: 18-28 AWG (1.5-0.08mm²)
Shape: Rectangular
34 Position Inline Receptacle, Pin, Keyed A, Double Latch, Black
