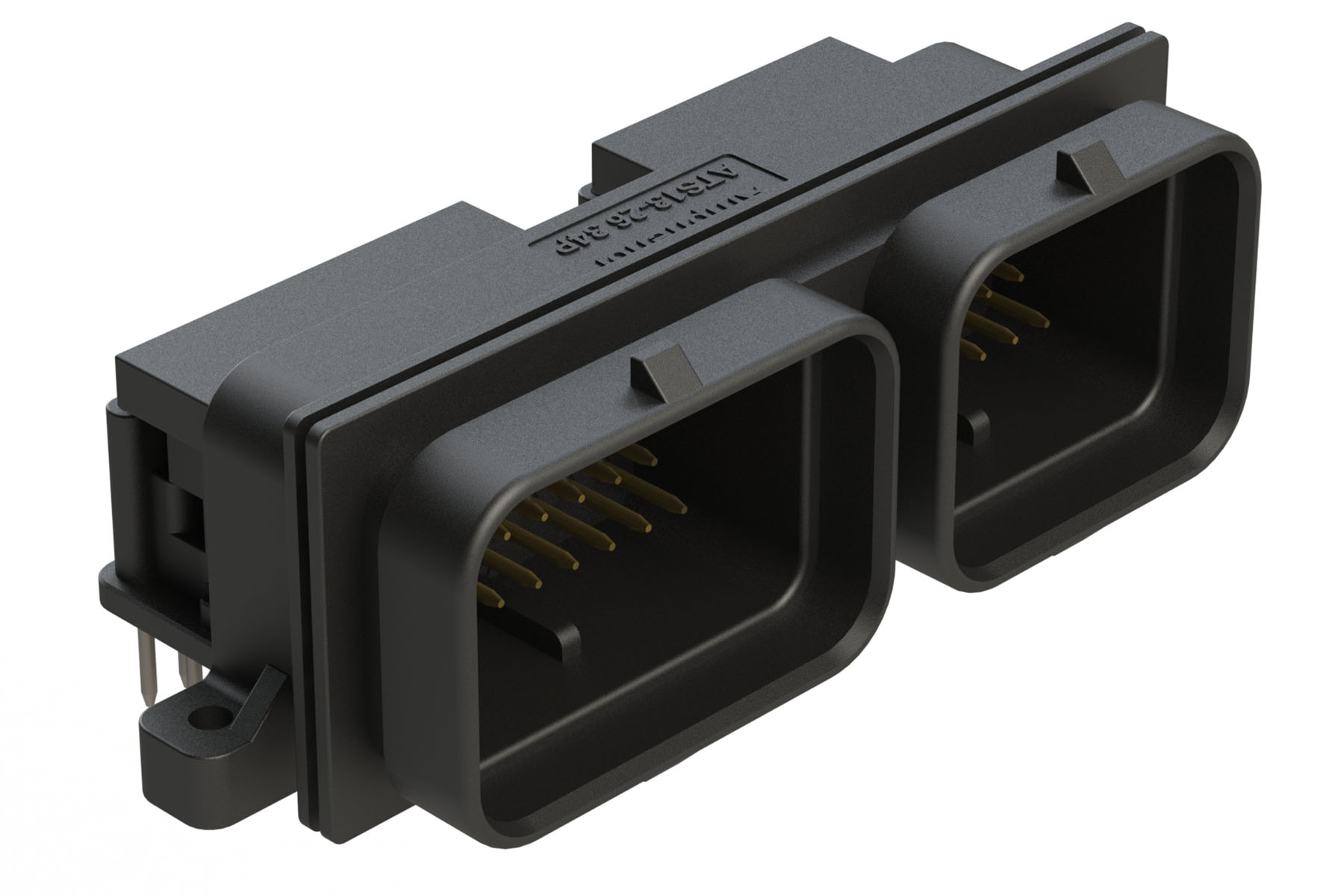

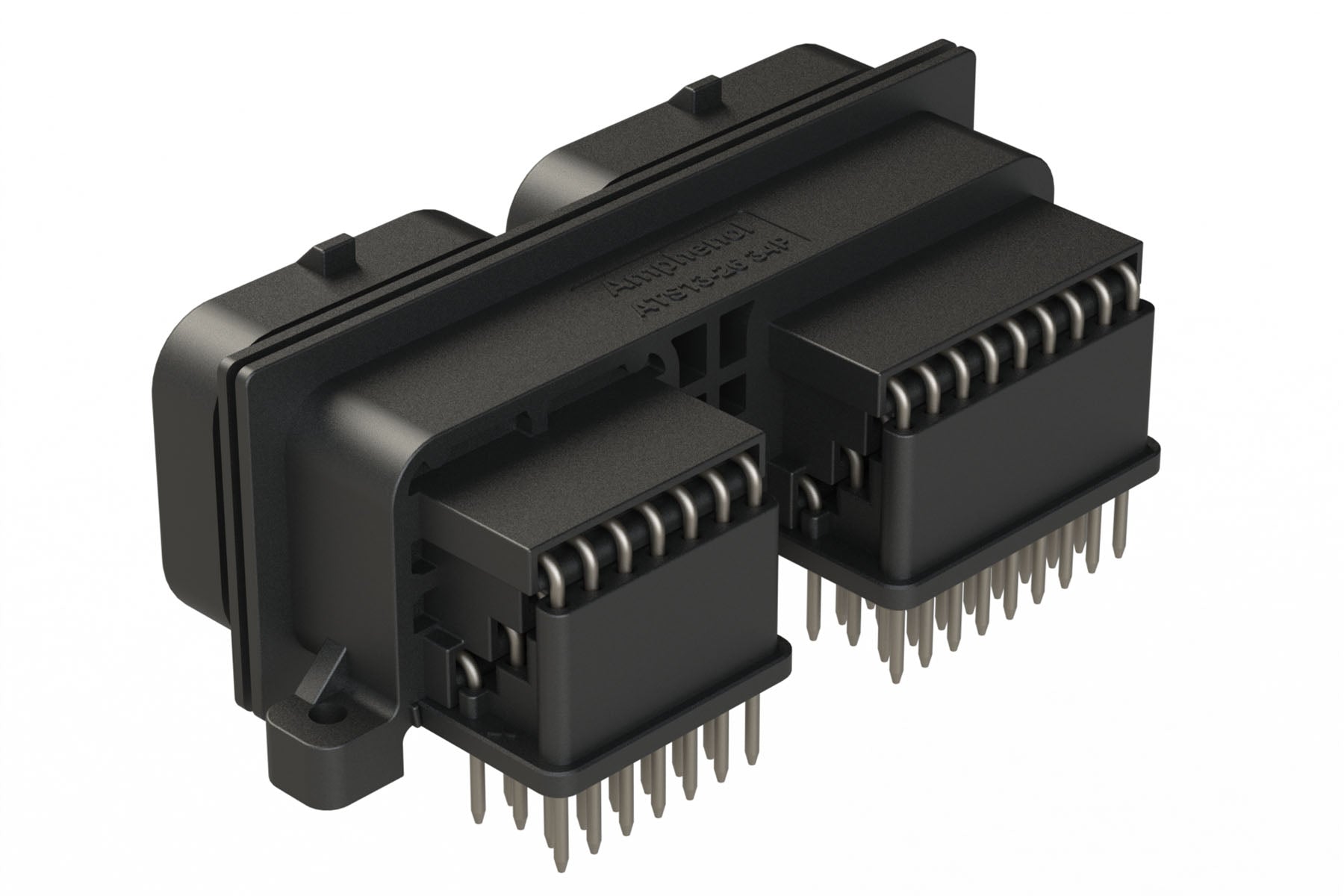

ATS13-2634PAA-BM285-2 60 (26+34) Position PCB Receptacle, Right Angle,Pin, Keyed A+A, Double Locking, Black
ATS13-2634PAA-BM285-2 60 (26+34) Position PCB Receptacle, Right Angle,Pin, Keyed A+A, Double Locking, Black
IMAGE MAY DIFFER
SKU:ATS13-2634PAA-BM285-2
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 60 (26+34)Gender: Male
Contact Size: 20
Contact Material: Copper Alloy
Amperage: 7.5 A
Colour: Black
IP Rating: IP67 & IP69K (mated condition)
Insulation Resistance: 1000 megohms min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >500
Housing Material: Thermoplastic
Mating Part: ATS06-26SA-*+ATS06-34SA-* PLUG
Shape: Rectangular
60 (26+34) Position PCB Receptacle, Right Angle,Pin, Keyed A+A, Double Locking, Black
