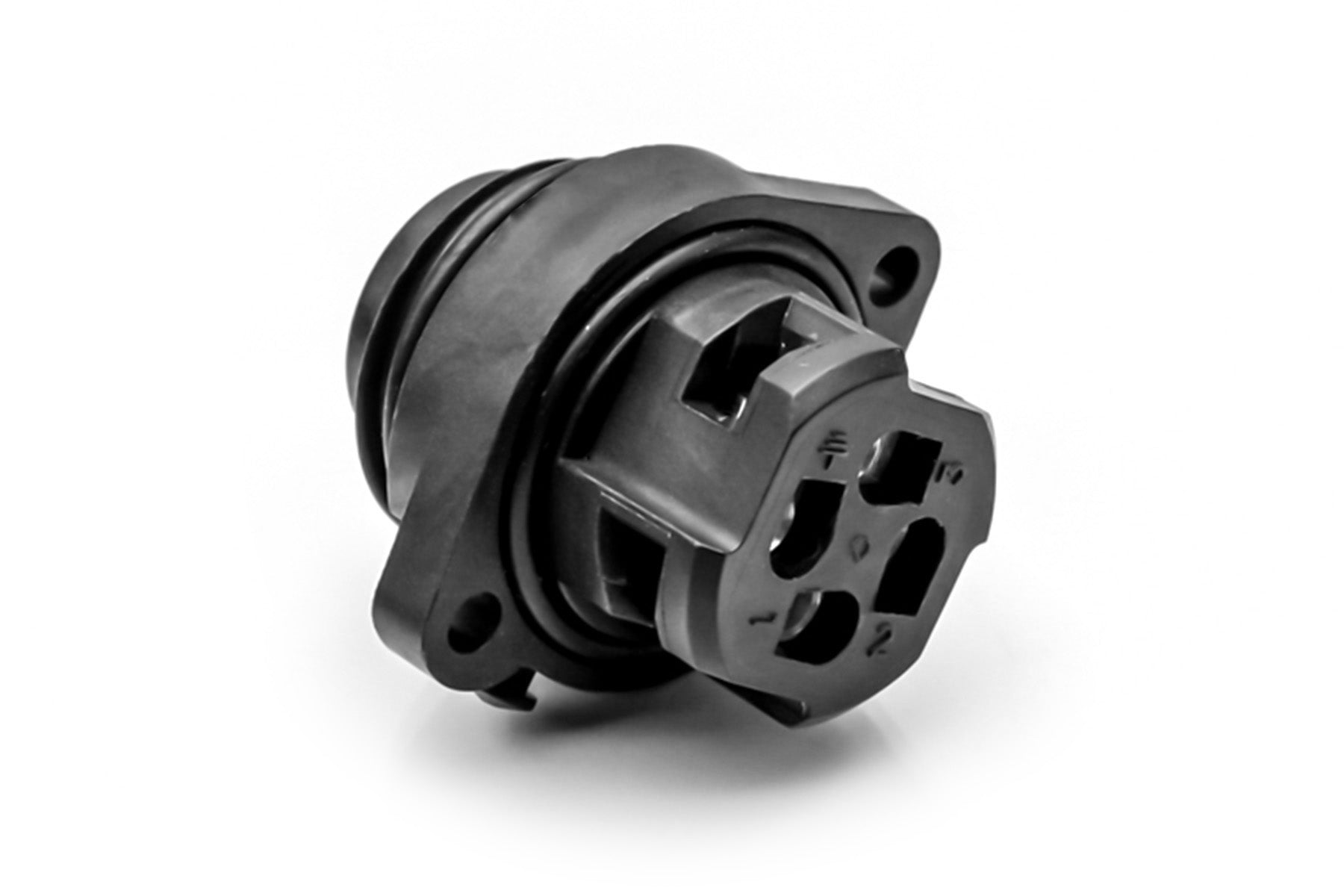

C016 20C003 100 12 3+PE Male receptacle with screw termination. Mounting hole Ø22 without chamfer; suitable sealing for screws is necessary. Comparable part no: 99-4223-00-04, CA3GS

Name: C016 20C003 100 12 3+PE Male receptacle with screw termination. Mounting hole Ø22 without chamfer; suitable sealing for screws is necessary. Comparable part no: 99-4223-00-04, CA3GS
Brand: Amphenol Australia
Availability: InStock

IMAGE MAY DIFFER

SKU:

$0.00 AUD

Sale Sold out

Quantity

Stock Level

Stock levels vary — Contact us for details

Downloads

Datasheet
3D Model

Specifications

Gender: Male
Current Carrying Capacity: 16A
Contact Quantity: 4
Colour: Black
IP Rating: IP65/67
Contact Plating: Silver
Insulation Resistance: ≥ 10(8) Ω
Operating Temperature: -40°C to +100°C
Housing Material: PA 6.6 / PA6
Mating Part: C01620D00310010,C01620D00310012,C01620D00311010,C01620D00311012,C01620D00320010,C01620D00320012,C01620D00321010,C01620D00321012,C01620F00310010,C01620F00310012,C01620F00320012
Wire Range: 2.5mm² (14 AWG)
Shape: circular

3+PE Male receptacle with screw termination. Mounting hole Ø22 without chamfer; suitable sealing for screws is necessary
