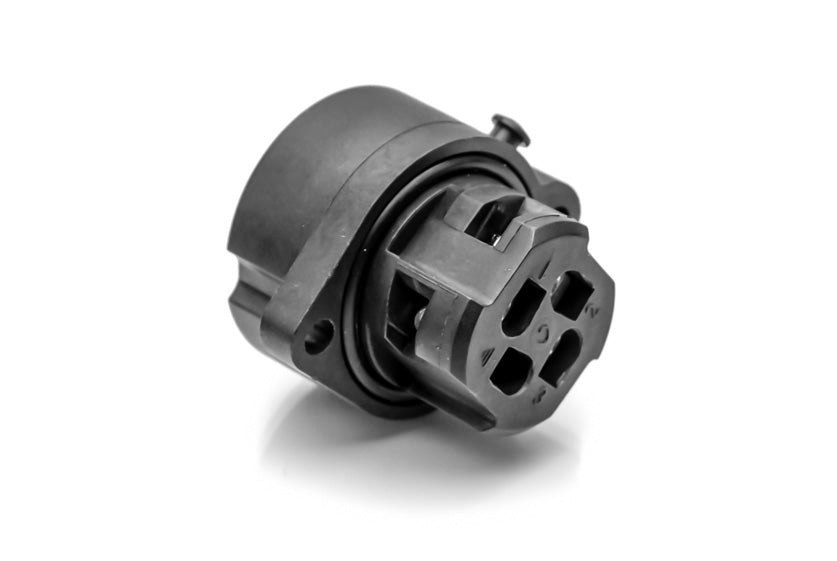

C016 20G003 200 12 3+PE Female receptacle with field installable screw termination.. Mounting hole Ø22 without chamfer; suitable sealing for screws is necessary

Name: C016 20G003 200 12 3+PE Female receptacle with field installable screw termination.. Mounting hole Ø22 without chamfer; suitable sealing for screws is necessary
Brand: Amphenol Australia
Availability: InStock

IMAGE MAY DIFFER

SKU:

$0.00 AUD

Sale Sold out

Quantity

Stock Level

Stock levels vary — Contact us for details

Downloads

Datasheet
3D Model

Specifications

Gender: Female
Current Carrying Capacity: 16A
Contact Quantity: 4
Colour: Black
IP Rating: IP65/67
Contact Plating: Gold
Insulation Resistance: ≥ 10(8) Ω
Operating Temperature: -40°C to +100°C
Housing Material: PA 6.6 / PA6
Mating Part: C01620H00320010,C01620H00320012,C01620H00321010,C01620H00321012
Wire Range: 0.25mm² (14 AWG)
Shape: circular

3+PE Female receptacle with field installable screw termination.. Mounting hole Ø22 without chamfer; suitable sealing for screws is necessary
