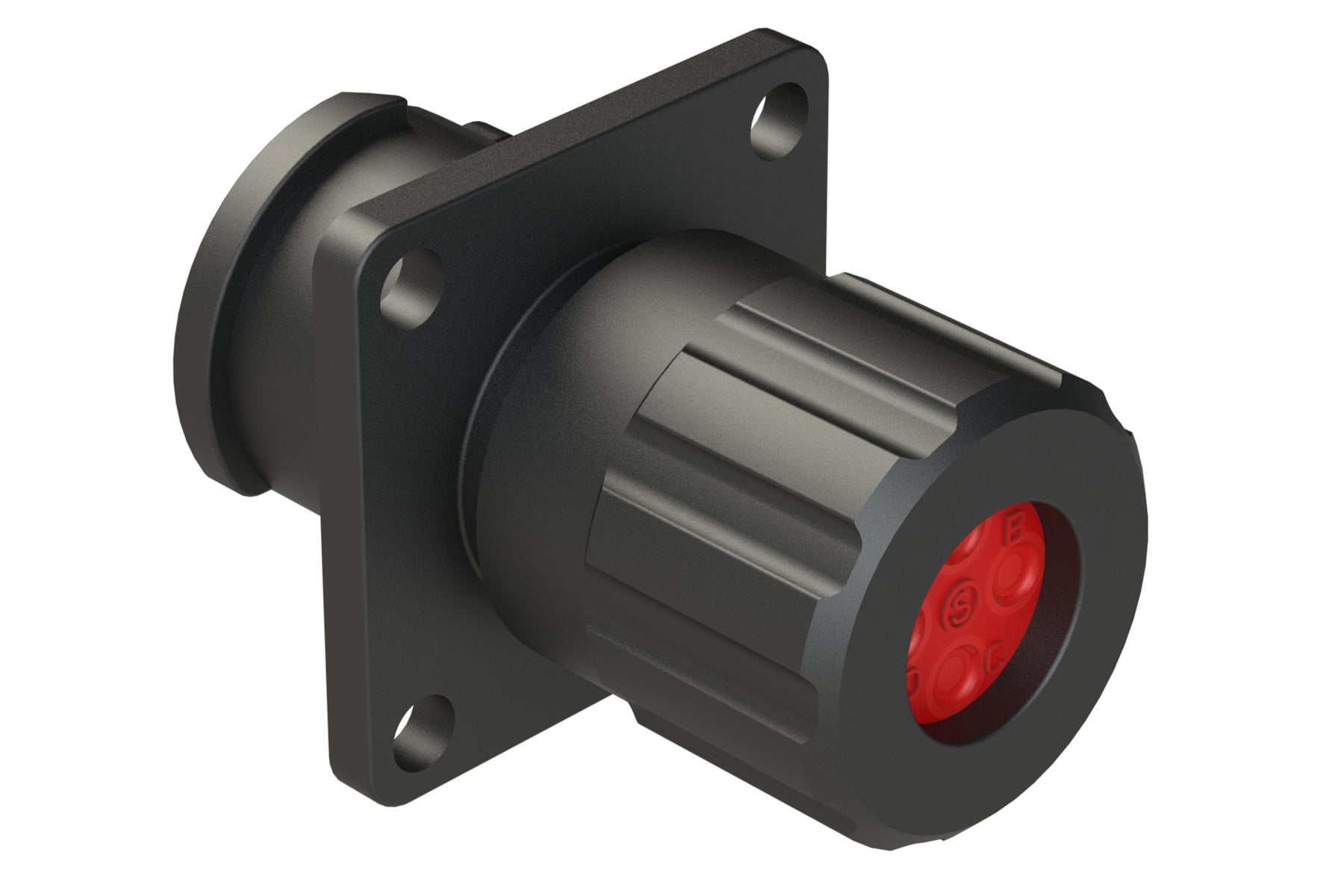

FLS010N4SHEC03 Receptacle, Square Flange, 4 Position, Female, Shell Size 10, Silicone Seal and End Cap with Individual Wire Sealing, Auto-Lock

Name: FLS010N4SHEC03 Receptacle, Square Flange, 4 Position, Female, Shell Size 10, Silicone Seal and End Cap with Individual Wire Sealing, Auto-Lock
Brand: Amphenol Australia
SKU: FLS010N4SHEC03
Availability: InStock

IMAGE MAY DIFFER

SKU:FLS010N4SHEC03

$0.00 AUD

Sale Sold out

Quantity

Stock Level

Stock levels vary — Contact us for details

Downloads

Datasheet
Assembly Instructions

Specifications

Gender: Female
Shell Size: 10
Contact Size: 16
Contact Quantity: 4
AWG: 14-26
Amperage: 13A
IP Rating: IP67, IP68 (1.8M) and IP69k (in mated condition)
Termination: Crimp
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: >500
Housing Material: Thermoplastic UL94 V-0
Mating Part: FLS610N4P*
Shape: Circular

Receptacle, Square Flange, 4 Position, Female, Shell Size 10, Silicone Seal and End Cap with Individual Wire Sealing, Auto-Lock
